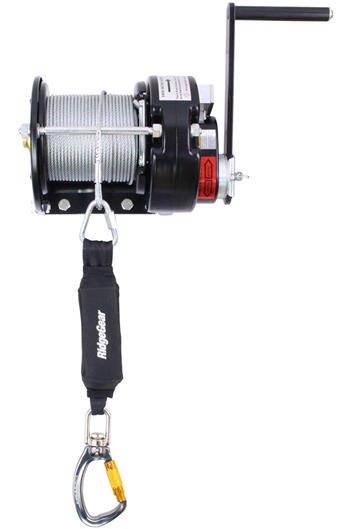

Ridgegear RGR7 15mtr Rescue Winch

Product Information

Ridgegear RGR7 15mtr rescue winch is fitted with an up/down clutch locking mechanism. It is manufactured from steel with a baked enamel finish, and has a 50cm diameter handle turn and will release approximately 48mm of cable on a one full handle turn.

The RGR7 is to be fitted to a RGR1 tripod, for confined space access when other means of entry are not available or deemed unsuitable the RGR7 can also raise a casualty to safety. The RGR7 must also be backed up with a separate fall arrest system such as RGA4.

Suitable For

• Chemical Vessels
• Confined space
• Manholes
• Rescue

Recommended for use with

• RGR1
• RGR4

Product Features

• Energy absorbing unit for additional safety
• Clutch locking mechanism for safe retrieval / lowering of cable & safety latch

Supplied with

• Triple action, aluminium swivel karabiner conforming to EN standard: EN 362:2004

Product Dimensions

• Product Weight: 19kg
• SWL: 140kg
• Gear ratio: 1:8.9
• Winch Size: 210mm (L) x 350mm (W) x 210mm (D)
• Wire rope length: 15mtrs
• Wire thickness: 5mm
• Wire material: Galvanised Steel
• Conforms to EN Standard: EN 1496:2017 Class A & B
