Scaffold Hoist 200kg 110v 25 mtrs Lift (LG200KT/TM235)Product Code: SCAFF-TM235
Price Breaks: See all quantity price breaks Click here for Net Weight
LIMITED OFFER -

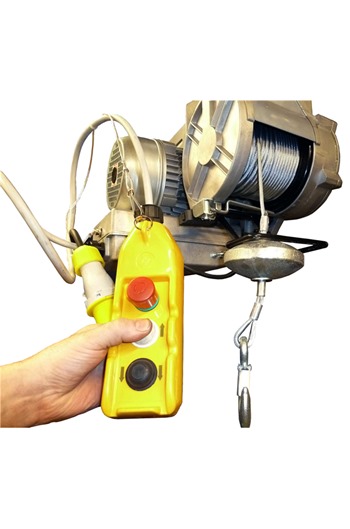

Model LG200K [TM235] Scaffold Hoist.
Heavy duty design for use in industrial / construction applications as used by many of the leading rental companies.
Front loading drum
Voltage 110 volt 50 Hz (0.75kW, 16Amp)
Capacitors 220-240 microF
Gear Ratio 0.0413
LIFT HEIGHT 25 METRES
Lift speed 23 metres per minute
Duty Cycle -S3 class which means 50% of working cycle.
You can use the hoist 30 min. in 1 hour (maximum 30 starts per hour).
Supplied complete with,
1no Lifting arm which allows the hoist to be operated from scaffolding
2no Scaffold brackets
1no Pendant control with emergency stop.
Standard Pendant length 1mtr plus pendant length.
For a small additional fee we can offer 2m and 3mtr pendant lengths.
We can also offer a converstion for radio control pendant.
Rope diameter 5mm.
Made in Italy
The front loading drum for the wire rope reduced the risk of bunching when used on scaffolding that is not perfectly straight.
12 months warranty
*** AVAILABLE FOR HIRE ***
