Yale Mtrac 300kg 230volt 'Mini' Endless WinchYale Mtrac 300kg 230volt 'Mini' Endless Winch

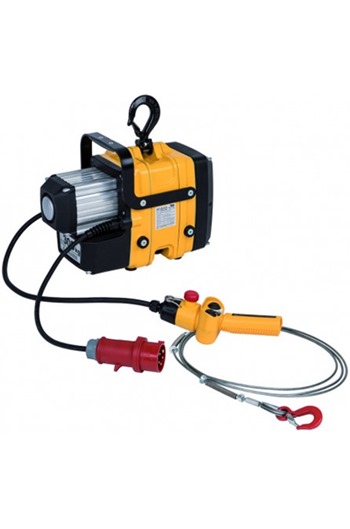

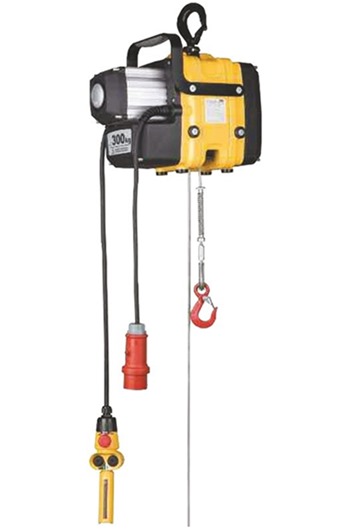

Yale Mtrac 300kg 230volt 'Mini' Endless Winch

Product Code: CM-YMT3-5
  • Product Info
  • YALE Mtrac 300kg 'MINI' ENDLESS WINCH

    The Yale Mtrac endless Winch combines state-of-the-art industrial design with technical innovation to solve a specific customer need - the need for a safe and simple handling solution for mobile applications

    Because the rope of the endless Winch is not collected during operation, there is no limit to the lifting height and traction length when using this product.  And, with a full offering of wire ropes and accessories, this Winch can be used in virtually any application requiring a Hoist

    The Mtrac endless Winch features a unique bi-directional actuator that allows the Winch to move the rated load on both ends of the rope.  A hook can be fitted on the unloaded rope end (please contact us for a price for the bi-directional hook conversion kit) thus eliminating no-load motions.  How does it work?  Once the load has reached the top position, the unloaded rope end with other hook is automatically in the bottom position and a new load can be picked up immediately.  The lifting frequency is doubled as the two falls can be evenly loaded alternately with the rated load

    The Mtrac is also compact and lightweight for easy transport with it's ergonomic, built-in carrying handle

    The Yale Mini's winch lifting capacity can be doubled up by means of a Reeving Kit (please contact us for a price as sold separately)

    Yale Mini Specifications:-

    Model: YMT3-5

    Capacity: 300kg single fall (standard), 600kg double fall (optional)

    Lifting speed: 5mtrs/min single fall (standard), 2.5mtrs/min double fall (optional)

    Operating voltage: 230v 1Ph 50Hz

    Rope lengths available: 10mtr, 20mtr, 30mtr, 40mtr, 50mtr, 60mtr, 80mtr, 100mtr & 150mtr

    Wire rope diameter: 6.5mm

    Control cable length: 2.3mtr (longer lengths available - please contact us)

    Power cable length: 1mtr (longer lengths available - please contact us)

    DELIVERY FOR OUR YALE MINI IS 3-4 WEEKS FROM DATE OF ORDER

    FOR MORE INFORMATION ON THE YALE MINI, CONTACT SAFETYLIFTINGEAR TODAY
