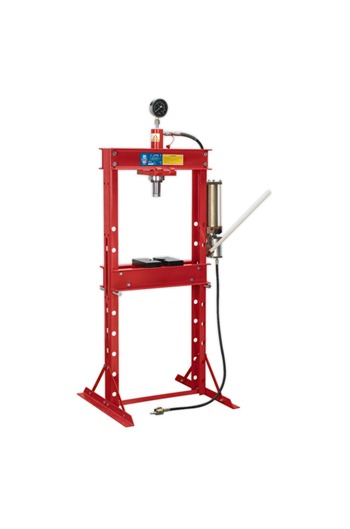

Sealey YK20FAH 20tonne Floor Type Air/Hydraulic Press

Sealey YK20FAH 20tonne Floor Type Air/Hydraulic Press

Steel frame construction with side mounted air motor powering hydraulic pump unit

Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications

Fitted with ram pressure gauge

Supplied with flat pressing plate/V-blocks

Model: YK20FAH

Air consumption: 4cfm

Bench or floor mounting: Floor

Capacity: 20tonne

Gauge Included: Yes

Lateral ram travel: 403mm

Maximum height - ram to table: 1018mm

Minimum height - ram to table: 58mm

Overall height: 1796mm

Ram diameter: 48mm

Ram stroke: 185mm

Table aperture: 100mm

Type: Air/Hydraulic

Working pressure: 108-120psi

Working table depth: 206mm

Working table width: 630mm

Net weight: 93kg
