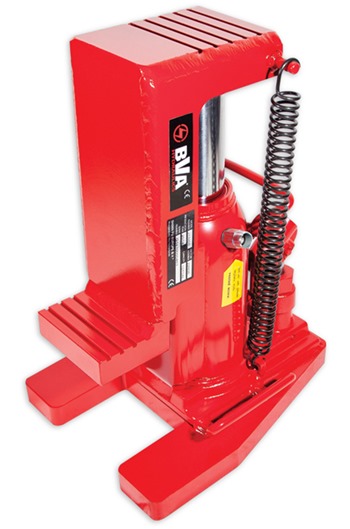

Steerman BVA-10 10000kg Hydraulic Toe Jack

Steerman BVA-10 10000kg Hydraulic Toe Jack

Steermand Hydraulic Toe Jacks are ideal when working in very confined spaces

Typical uses include lifting and positioning of heavy machinery, fabricated steel structures and general engineering applications

These Jacks are also ideal for user with a set of Steerman Skates

Features include:-

• Lifting capacity of 10000kg on the head and toe
• Extremely low entry height of the toe
• Operating lever rotates through 220°
• Carry handle for ease of handling
• Chrome plated ram and pump piston

Model: BVA-10

Capacity: 10000kg head and toe

Stroke: 130mm

Closed height: 280mm

Toe height: 29mm

Base dimensions: 295mm (L) x 230mm (W)

Weight: 39.5kg
