Tiger 10tonne BCS Beam Clamp with Shackle 120-350mm

More From This Brand

Add to New List

• Product Info

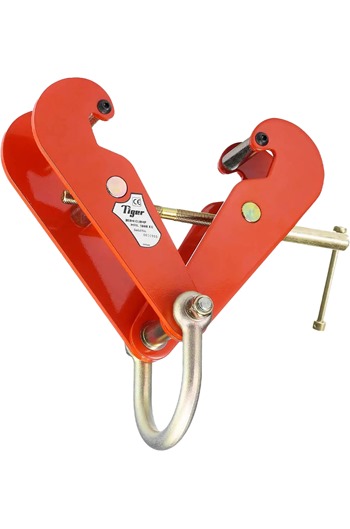

• Tiger 10tonne BCS Beam Clamp with Shackle

  • Quick and versatile rigging point for hoisting equipment
  • Shackle suspension point
  • Highly flexible – for lifting, pulling or as an anchor point
  • Multidirectional adjusting screw spindle for easy attachment and safe and secure grip
  • Wide Beam flange adjustment range
  • Operating temperature -40°C to +80°C

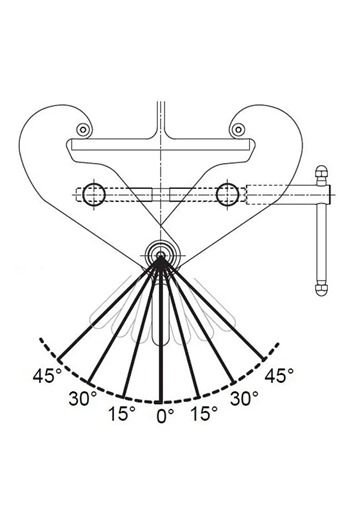

  • Factor of safety: 5:1 for straight pulling and lifting, 4:1 at angles up to 45°(applying the appropriate reduction in WLL)
  • Part code: BCS-1000
  • Capacity: 10tonne
  • Beam width range: 120-350mm
  • Weight: 26.5kg
• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Tiger 10tonne BCS Beam Clamp with Shackle (Net Weight Per Item: 26.50kg):

  Quantity:

  1 - 1

  (£402.58 inc VAT)

  Quantity:

  2 - 3

  (£398.15 inc VAT)

  Quantity:

  4+

  (£395.33 inc VAT)
