Tiger 5tonne BCS Beam Clamp with Shackle 75-305mm

More From This Brand

Add to New List

• Product Info

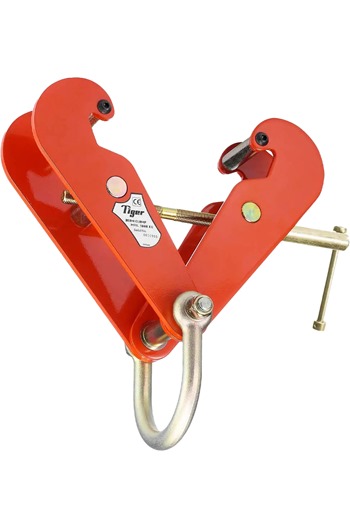

• Tiger 5tonne BCS Beam Clamp with Shackle

  • Quick and versatile rigging point for hoisting equipment
  • Shackle suspension point
  • Highly flexible – for lifting, pulling or as an anchor point
  • Multidirectional adjusting screw spindle for easy attachment and safe and secure grip
  • Wide Beam flange adjustment range
  • Operating temperature -40°C to +80°C

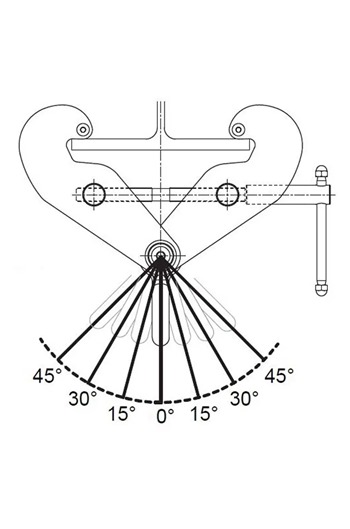

  • Factor of safety: 5:1 for straight pulling and lifting, 4:1 at angles up to 45°(applying the appropriate reduction in WLL)
  • Part code: BCS-0500
  • Capacity: 5tonne
  • Beam width range: 75-305mm
  • Weight: 11kg
• Specifications

• Additional Information

  Data Sheet
• Price Breaks
• Tiger 5tonne BCS Beam Clamp with Shackle (Net Weight Per Item: 11.00kg):

  Quantity:

  1 - 1

  (£174.26 inc VAT)

  Quantity:

  2 - 3

  (£171.82 inc VAT)

  Quantity:

  4+

  (£170.08 inc VAT)
