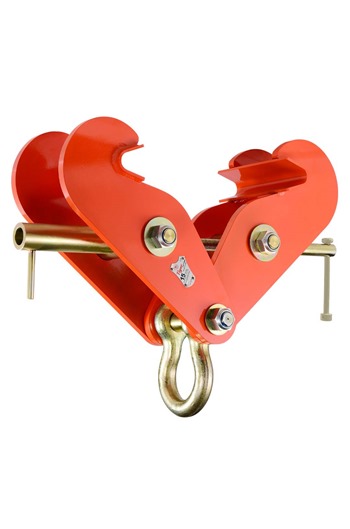

Tiger BCF 1tonne Fixed Jaw Heavy Duty Beam Clamp with Shackle 75-195mm

More From This Brand

Add to New List

• Product Info

• Tiger BCF 1tonne Fixed Jaw Heavy Duty Beam Clamp with Shackle

  Quick and versatile rigging point for hoisting equipment

  Shackle suspension point

  Suitable for pulling and lifting at angles across the beam

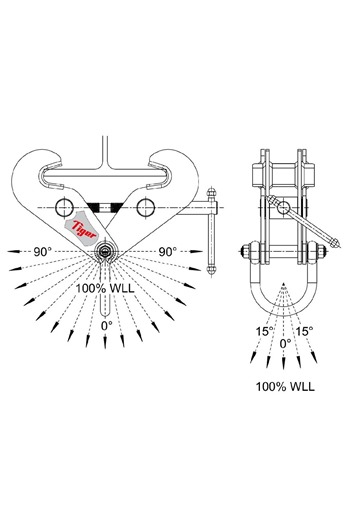

  Up to 90° side loading with no deration

  15° cross loading with no deration

  Highly flexible – for lifting, pulling or as a semi-permanent anchor point

  Evenly distributed loads achieved through maximum jaw surface area

  Multidirectional adjusting screw spindle ensures a high clamping force to the various flange sizes within its capacity

  Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)

  Factor of safety: 5:1 for straight pulling and lifting, 4:1 at other angles stated above

  Model: BCF-0100

  Capacity: 1tonne

  Beam width range: 75-195mm

  Weight: 5.5kg

• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Tiger BCF 1tonne Fixed Jaw Heavy Duty Beam Clamp with Shackle (Net Weight Per Item: 5.50kg):

  Quantity:

  1 - 1

  (£113.51 inc VAT)

  Quantity:

  2 - 3

  (£110.44 inc VAT)

  Quantity:

  4+

  (£107.38 inc VAT)
