Tractel MOBIFOR Mobile Anchor Point

Tractel MOBIFOR Mobile Anchor Point

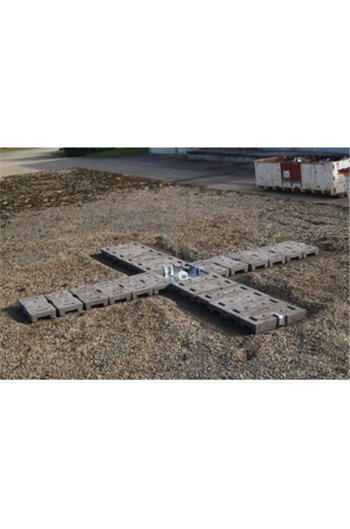

The Mobifor™ is a deadweight anchoring system, for installation on flat roofs and fall risk areas

The set consists of 24x 25kg steel-reinforced, concrete blocks, positioned on four steel arms

The arms are connected at the centre by a joining plate equipped with a rotary anchor point with an energy dissipater

SPECIFICATION

• 4 arms made of galvanised steel
• 24 concrete weights
• Rotary anchor point
• Conforms to standard EN 795 E /2012

NO TOOLS REQUIRED

• The connecting plate is set up with no need to drill holes in the roof
• The arms click easily into the plate
• Weights automatically interlock

EASY TO SET UP

• Takes less than 5 minutes to set up
• The system uses ergonomic weights with large handles
• Overall weight is distributed across 24 separate weights making it easy to lift and carry
• The weights are easy to install on the arms

ENHANCED FALL PROTECTION

• 360 degree movement possible thanks to the rotary anchor point.
• Compatible with a variety of fall arrest devices.

EXTREMELY VERSATILE

• Adapts to all horizontal roofs meeting European requirements
• Its weight and volume allows for installation in places where traditional anchoring systems cannot be installed
• Can be placed on a slope with an inclination of up to 5 degrees
• Can be installed without penetrating the roof surface
• Can be installed on the following roof surfaces: EPDM, bitumen, PVC
