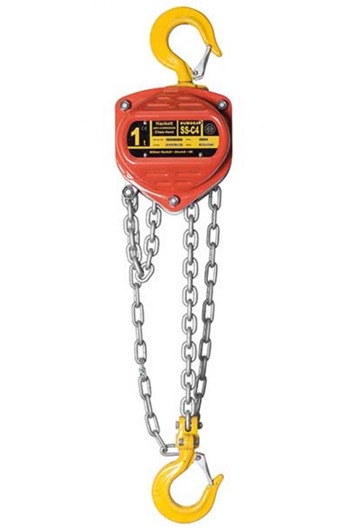

William Hackett SS-C4 2000kg Off-shore Chainblock
The William Hackett SS-C4 Offshore Chain Hoist meets and exceeds the requirements of the following international standards:-
- British Standard BS EN13157:2004 + AI:2009
- American Standard ASME B30.16-2012
- Australian Standard AS1418.2-1997
- South African Standard SANS 1594:2007
- NORSOK R-002: 2017
William Hackett has taken its extensive knowledge acquired in the supply of a specialist topside and subsea hoisting range to the offshore sector and translated this technology to a second generation range of William Hackett SS-C4 offshore chain hoists
SS-C4 design and specification features:-
- LIGHT LOAD CAPABILITY: The SS-C4 is tested and certified at 2% of the chain hoist rated capacity
- SAFETY LATCHES: The SS-C4 chain hoist top and bottom hooks are fitted with heavy duty cast steel latches. The latch and hook tips are integrated creating a strong and robust hook closure
- OVERLOAD INDICATOR MARKS: SS-C4 chain block top and bottom hooks have, as part of the hook forging, overload indicator marks either side of the hook throat
- HOOK HOUSING: The SS-C4 chain hoist top and bottom hook housings are secured with socket head cap screws/hex head bolts and nyloc insert locking nuts
- FLEETING/CROSS HAULING: The SS-C4 chain hoist has been independently tested and vertified (Test Report 2550-7615) for fleeting or cross hauling applications at angles up to 45° from the vertical without deration
- LOAD CHAIN: These chain blocks are fitted with load chain that fully complies with international standard BS EN818-7 Grade T (8)
- TEMPERATURE RANGE: -20°C to + 120°C
- PROOF TESTED: Every hoist is proof tested to 1.5 times the Working Load Limit
- CORROSION PROTECTION: All internal brake components and latch kits are corrosion protected and tested to 500hrs and salt spray testing according to ASTM B117 and ISO9227
- OPTIONAL EXTRA: The SS-C4 chain block can be fitted with an overload limiter and also hook adaptors to allow any Gr8 fixing to be fitted to the SS-C4 to suit varying applications
Capacity: 1000kg
Number of falls: 1
Lifting heights available from 3mtr to 20mtr
Weight based on 3mtr HOL: 16.8kg
