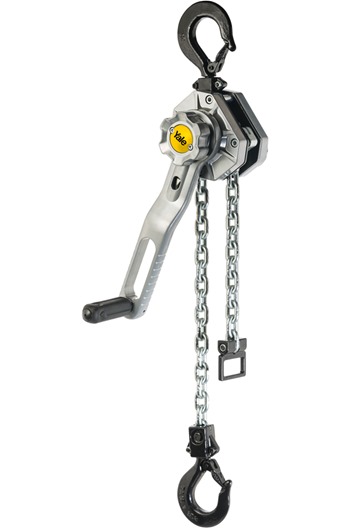

YALE ERGO 360 9000kg Ratchet Leverhoist

YALE ERGO 360 9000kg RATCHET LEVERHOIST

Redefing lever-operated hoists, the Yale ERGO 360 features the revolutionary crank handle that allows for effiecient operation in both lifting and pulling applications

Ergonmically designed for increased safety, the patent-pending Yale ERGO 360 lets the operator to work up to 12 times faster and with as much as 30% less pull force than conventional ratchet lever tools

BENEFITS & FEATURES

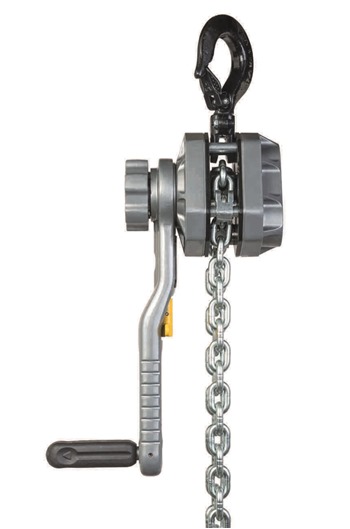

• Crank Handle - this first-of-its-kind lever handle design will revolutionize the ratchet lever hoist industry.  Its unique foldable lever handle and 360degree rotation action increases productivity while reducing the risk of operator injury

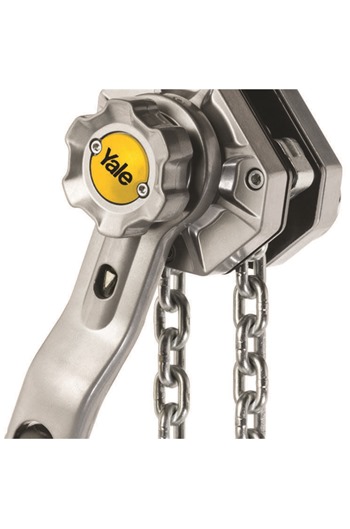

• Convenient directional indicator - Easy-to-use, highly visible directional indicator located on the handle clearly shows the operating direction as listing, lowering or neutral
• Easy & Smooth free chaining - For quick take up and positioning of slack chain - even with one hand.  Designed not to be accidently free chain while under load.  Cast chain end stop allows the user to easily position the chain in free-chaining mode and prevents it from entering the liftwheel and jamming the hoist
• Positive load control - Enclosed Weston-type brake stays clean and dry for precise load positioning
• Built to last - Lightweight aluminium housing withstands rigorous use and features high-quality, long-lasting bearings.  Powder coat finish provides extra protection in harsh environments
• Excellent corrosion protection - Robust chain giude and chain stripper made from cast steel and zinc-plated for corrosion protection
• Easy-to-inspect Swivel Hooks - Bolt on Hooks with nylon locks simplify the inspection (process).  Hooks are forged, allowing them to yield under overload without breaking.  Cast safety latches provide positive and secure load engagement
• Easy identification - Each unit has a unique serial number for easy and accurate identification

SWL: 9000kg

Number of chain falls: 3

Chain dimensions: 10 x 28mm

Closed height: 695mm

Handle effort at WLL: 46 daN

Weight: 49.5kg

Available in 1.5mtr, 3mtr, 4mtr & 6mtr HOL
