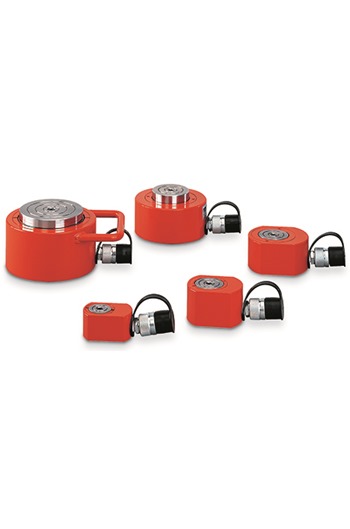

Yale YFS 10tonne Low Height Pad Jack 11mm Stroke

More From This Brand

Add to New List

• Product Info

• Low-height cylinders are recommended for all lifting, pushing, levelling, pressing applications especially in tight working areas

  These very compact hydraulic cylinders are designed for lifting and positioning jobs as well as all general maintenance applications, where low height, portability and light weight are needed. These versatile cylinders are found in all industrial areas like steel mills, civil engineering, heavy construction industry, power plants, off-shore industries etc. Due to their short strokes flat cylinders should not be subjected to side loading

  Key Features

  ---

  • Yale ChroMo-Design
  • Operating pressure max. 700 bar
  • Single-acting with spring return
  • Low height for tight working areas
  • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
  • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper Dirt wiper protects against dirt
  • Oil port thread 3/8 NPT
  • Incl. female coupler half CFY-1

  Specifications

  ---

  • Model: YFS-10/11
  • Capacity: 10tonne
  • Stroke: 11mm
  • Closed height: 43mm
  • Cylinder outside diameter: 56mm
  • Effective plunger area: 14.3cm²
  • Oil volume max: 16cm³
  • Weight: 1.5kg
• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Yale YFS 10tonne Low Height Pad Jack 11mm Stroke (Net Weight Per Item: 1.50kg):

  Quantity:

  1 - 1

  (£311.94 inc VAT)

  Quantity:

  2 - 3

  (£307.26 inc VAT)

  Quantity:

  4+

  (£303.83 inc VAT)
