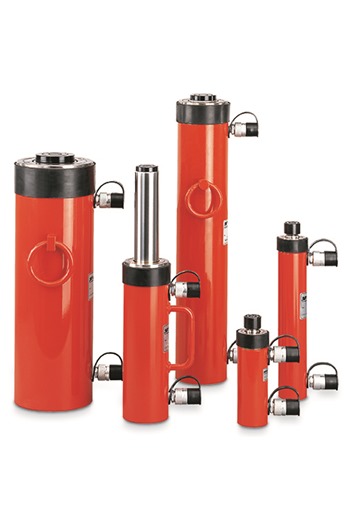

Yale YH 200tonne Double Acting Universal Hydraulic Cylinder 350mm stroke

Product Code: YALE-YH200-350
  • Product Info
  • These extremely robust double-acting cylinders are especially designed for universal heavy-duty lifting and positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed

    Major areas of application are bridge building and civil engineering, off-shore, ship building, etc. They can also be used as power source in frame presses, stamping fixtures and other industrial uses where high pushing and pulling forces are required

    Key Features


    • Yale ChroMo-Design
    • Operating pressure max. 700 bar
    • Double-acting with hydraulic return
    • Long bronze piston guidings
    • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
    • Hard-chromium plated piston with replaceable, heat treated saddle
    • Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod
    • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper
    • Interchangeable hardened saddle
    • Dirt wiper protects against dirt
    • Fitted with carrying handle
    • Oil port thread 3/8 NPT
    • Incl. 2x female coupler halves CFY-1

    Specifications


    • Model: YH-200/350
    • Cylinder size: 200tonne
    • Capacity push: 2000kN
    • Capacity pull: 900kN
    • Stroke: 350mm
    • Closed height: 620mm
    • Cylinder outside diameter: 250mm
    • Effective plunger area push: 286cm²
    • Effective plunger area pull: 128.7cm²
    • Oil volume max: 9924cm³
    • Weight: 198kg
  • Specifications
  • Additional Info
  • Price Breaks
  • Yale YH 200tonne Double Acting Universal Hydraulic Cylinder 350mm stroke (Net Weight Per Item: 198.00kg):
    Quantity:
    1 - 1
    (£8,483.82 inc VAT)
    Quantity:
    2 - 3
    (£8,356.56 inc VAT)
    Quantity:
    4+
    (£8,263.24 inc VAT)

  Online Price

£8,483.82
£7,069.85 (ex VAT)
£9,120.11 Each inc VAT
(£7,600.09 ex VAT)
