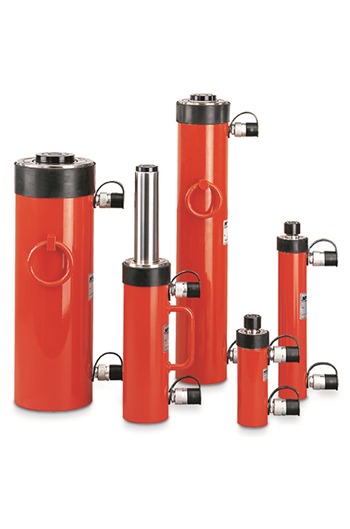

These extremely robust double-acting cylinders are especially designed for universal heavy-duty lifting and positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed
Major areas of application are bridge building and civil engineering, off-shore, ship building, etc. They can also be used as power source in frame presses, stamping fixtures and other industrial uses where high pushing and pulling forces are required
Key Features
- Yale ChroMo-Design
- Operating pressure max. 700 bar
- Double-acting with hydraulic return
- Long bronze piston guidings
- Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
- Hard-chromium plated piston with replaceable, heat treated saddle
- Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod
- Stop ring can bear full capacity (pressure) and is fitted with dirt wiper
- Interchangeable hardened saddle
- Dirt wiper protects against dirt
- Fitted with carrying handle
- Oil port thread 3/8 NPT
- Incl. 2x female coupler halves CFY-1
Specifications
- Model: YH-30/200
- Cylinder size: 30tonne
- Capacity push: 300kN
- Capacity pull: 140kN
- Stroke: 200mm
- Closed height: 355mm
- Cylinder outside diameter: 102mm
- Effective plunger area push: 42.9cm²
- Effective plunger area pull: 20cm²
- Oil volume max: 884cm³
- Weight: 19kg
