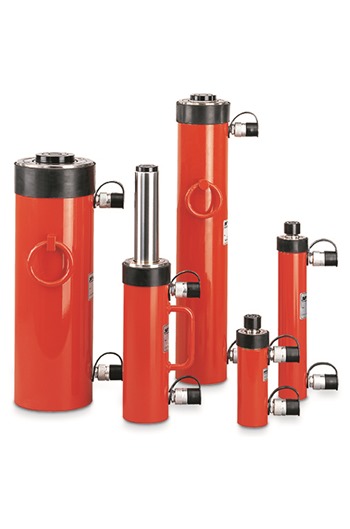

Yale YH 50tonne Double Acting Universal Hydraulic Cylinder 500mm stroke

Product Code: YALE-YH50-500
  • Product Info
  • These extremely robust double-acting cylinders are especially designed for universal heavy-duty lifting and positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed

    Major areas of application are bridge building and civil engineering, off-shore, ship building, etc. They can also be used as power source in frame presses, stamping fixtures and other industrial uses where high pushing and pulling forces are required

    Key Features


    • Yale ChroMo-Design
    • Operating pressure max. 700 bar
    • Double-acting with hydraulic return
    • Long bronze piston guidings
    • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
    • Hard-chromium plated piston with replaceable, heat treated saddle
    • Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod
    • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper
    • Interchangeable hardened saddle
    • Dirt wiper protects against dirt
    • Fitted with 2 lifting rings
    • Oil port thread 3/8 NPT
    • Incl. 2x female coupler halves CFY-1

    Specifications


    • Model: YH-50/500
    • Cylinder size: 50tonne
    • Capacity push: 500kN
    • Capacity pull: 220kN
    • Stroke: 500mm
    • Closed height: 685mm
    • Cylinder outside diameter: 125mm
    • Effective plunger area push: 71.5cm²
    • Effective plunger area pull: 31.5cm²
    • Oil volume max: 3544cm³
    • Weight: 52kg
  • Specifications
  • Additional Info
  • Price Breaks
  • Yale YH 50tonne Double Acting Universal Hydraulic Cylinder 500mm stroke (Net Weight Per Item: 52.00kg):
    Quantity:
    1 - 1
    (£2,563.80 inc VAT)
    Quantity:
    2 - 3
    (£2,525.34 inc VAT)
    Quantity:
    4+
    (£2,497.14 inc VAT)

  Online Price

£2,563.80
£2,136.50 (ex VAT)
£2,756.09 Each inc VAT
(£2,296.74 ex VAT)
