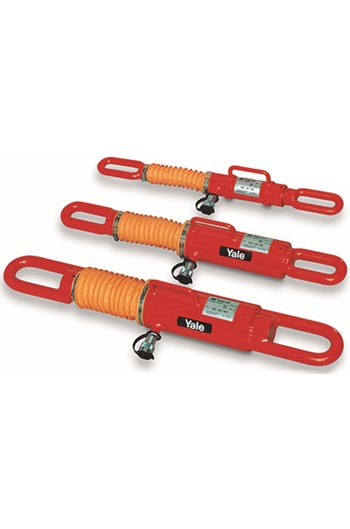

Yale YPL 20tonne Single Acting Hydraulic Pull Cylinder

More From This Brand

Add to New List

• Product Info

• Pull cylinders are able to produce extremely high pulling forces and can be controlled precisely by the use of hand pumps or power packs. In neutral position pull cylinders are fully extended. As soon as the cylinders are pressurized the forged links are drawn together. A built-in return spring extends the piston again as soon as the pressure is released

  Ideal for Shipbuilding, heavy-vessel construction, steel construction, civil engineering as well as general repair and maintenance applications

  Key Features

  ---

  • Yale ChroMo-Design
  • Operating pressure max. 700 bar
  • Single-acting with spring return
  • Can be operated in all positions
  • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
  • Hard-chromium plated piston with replaceable, heat treated saddle
  • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper Dirt wiper protects against dirt
  • Forged, replaceable links
  • With carrying handle and piston protection cover
  • Oil port thread 3/8 NPT
  • Incl. female coupler half CFY-1

  Speficiations

  ---

  • Model: YPL-20/150
  • Capacity: 20tonne
  • Stroke: 150mm
  • Effective plunger area: 30.6cm²
  • Oil volume max: 459cm³
  • Length between links: 795mm
  • Weight: 22kg
• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Yale YPL 20tonne Single Acting Hydraulic Pull Cylinder (Net Weight Per Item: 22.00kg):

  Quantity:

  1 - 1

  (£1,979.94 inc VAT)

  Quantity:

  2 - 3

  (£1,950.24 inc VAT)

  Quantity:

  4+

  (£1,930.44 inc VAT)
