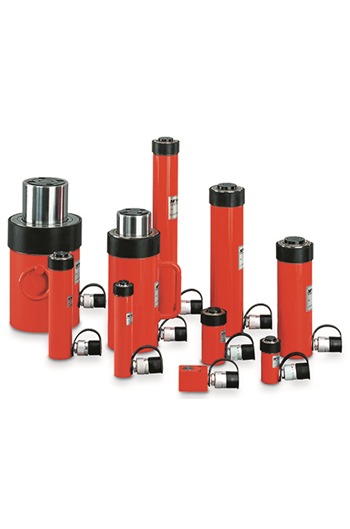

Yale YS 5tonne Universal Hydraulic Cylinder 15mm Stroke

Product Code: YALE-YS5-15
  • Product Info
  • Universal cylinders are designed for all jobs where high forces but compact dimensions are required: e.g. straightening steel constructions, removing parts like shafts, axles, lifting, positioning, weighing, supporting, testing as well as for all general assembly and repair applications. Due to the various mounting threads the cylinders can easily be installed in clamping devices, welding fixtures, frame presses etc

    Key Features


    • Yale ChroMo-Design
    • Operating pressure max. 700 bar
    • Single-acting with spring return
    • Robust design with long piston bearings to withstand eccentric loading
    • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated
    • Hard-chromium plated piston with replaceable, heattreated saddle
    • Metric mounting threads on cylinder collar, in the base and piston rod (5 to 30 t)
    • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper
    • Interchangeable hardened saddle
    • Dirt wiper protects against dirt
    • Oil port thread 3/8 NPT
    • Incl. female coupler half CFY-1

    Specifications


    • Model: YS-5/15
    • Capacity: 5tonne
    • Stroke: 15mm
    • Closed height: 45mm
    • Cylinder outside diameter: 41mm
    • Effective plunger area: 7.2cm²
    • Oill volume max: 11cm³
    • Weight: 0.9kg
  • Specifications
  • Additional Info
  • Price Breaks
  • Yale YS 5tonne Universal Hydraulic Cylinder 15mm Stroke (Net Weight Per Item: 0.90kg):
    Quantity:
    1 - 1
    (£220.20 inc VAT)
    Quantity:
    2 - 3
    (£216.90 inc VAT)
    Quantity:
    4+
    (£214.47 inc VAT)

  Online Price

£220.20
£183.50 (ex VAT)
£255.43 Each inc VAT
(£212.86 ex VAT)
