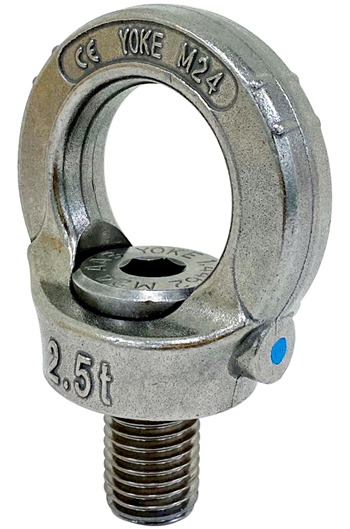

Yoke 8-S291 Stainless Steel Eye Lifting Point Metric Thread

More From This Brand

Add to New List

• Product Info

• Yoke 8-S291 Stainless Steel Eye Lifting Point Metric Thread

  • Rotates through 360° adjustable in the direction of the load
  • Manufactured from stainless steel
  • Tested in accordance with EN1677-1
  • Individual forged parts and cap screw are traceable to Test Certification
  • Bolts are Metric thread
  • Proof tested to 2.5 times the WLL
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26
  • Quick and simple assembly, just a tapped hole is required
  • Used in different applications such as chemical, oil, coal industries, food processing, clean room and precision instrument
  • Available in thread size M12 to M24
  • See attached data sheet for loading chart
• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Yoke 8-S291 Stainless Steel Eye Lifting Point M12 (Net Weight Per Item: 0.20kg):

  Quantity:

  1 - 1

  (£88.45 inc VAT)

  Quantity:

  2 - 3

  (£87.13 inc VAT)

  Quantity:

  4 - 7

  (£86.24 inc VAT)

  Quantity:

  8+

  (£85.36 inc VAT)
  Yoke 8-S291 Stainless Steel Eye Lifting Point M16 (Net Weight Per Item: 0.30kg):

  Quantity:

  1 - 1

  (£100.18 inc VAT)

  Quantity:

  2 - 3

  (£98.67 inc VAT)

  Quantity:

  4 - 7

  (£97.67 inc VAT)

  Quantity:

  8+

  (£96.67 inc VAT)
  Yoke 8-S291 Stainless Steel Eye Lifting Point M20 (Net Weight Per Item: 0.60kg):

  Quantity:

  1 - 1

  (£121.87 inc VAT)

  Quantity:

  2 - 3

  (£120.04 inc VAT)

  Quantity:

  4 - 7

  (£118.83 inc VAT)

  Quantity:

  8+

  (£117.61 inc VAT)
  Yoke 8-S291 Stainless Steel Eye Lifting Point M24 (Net Weight Per Item: 1.00kg):

  Quantity:

  1 - 1

  (£160.40 inc VAT)

  Quantity:

  2 - 3

  (£158.00 inc VAT)

  Quantity:

  4 - 7

  (£156.39 inc VAT)

  Quantity:

  8+

  (£154.79 inc VAT)
