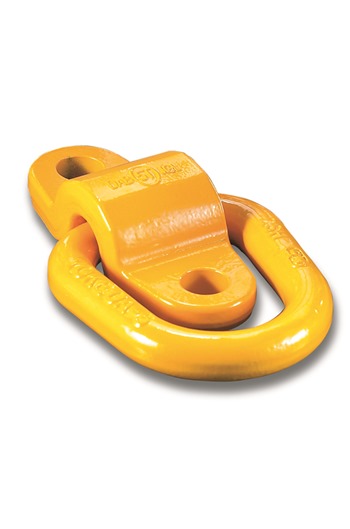

Yoke Grade 8 Bolt-on Lifting Point 1tonne to 5tonne

More From This Brand

Add to New List

• Product Info

• Yoke Grade 8 Bolt-on Lifting Point BS EN 1677-1+2

  • Designed with spring, stop at any angle supplied without bolt
  • Pivots 180° and allows side load lifting
  • Manufactured from forged alloy steel, quenched and tempered
  • Manufactured and tested in accordance with EN1677-1
  • Load rated parts are 100% magnaflux crack detected
  • Individual forged parts are traceable to Test Certification
  • Supplied without bolts; usage of Grade 10.9 or Grade 12.9 bolts is recommended
  • Proof tested to 2.5 times the WLL
  • Fatigue rated to 1.5 times the WLL
  • Design Factor 5 : 1
  • All YOKE lifting points meet or exceed all the requirements of ASME B30.26

  Uses:-

  • Designed to be semi-permanent lashing or lifting point
  • Suitable for attachment to lifting beams and spreader beams

  Available in 1tonne, 3tonne and 5tonne capacity

  Please see attached data sheet for dimensions and loading chart



• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Yoke 1tonne Grade 8 Bolt-on Lifting Point (Net Weight Per Item: 0.70kg):

  Quantity:

  1 - 1

  (£39.94 inc VAT)

  Quantity:

  2 - 3

  (£39.34 inc VAT)

  Quantity:

  4 - 7

  (£38.94 inc VAT)

  Quantity:

  8+

  (£38.54 inc VAT)
  Yoke 3tonne Grade 8 Bolt-on Lifting Point (Net Weight Per Item: 1.10kg):

  Quantity:

  1 - 1

  (£49.63 inc VAT)

  Quantity:

  2 - 3

  (£48.89 inc VAT)

  Quantity:

  4 - 7

  (£48.39 inc VAT)

  Quantity:

  8+

  (£47.89 inc VAT)
  Yoke 5tonne Grade 8 Bolt-on Lifting Point (Net Weight Per Item: 2.50kg):

  Quantity:

  1 - 1

  (£70.12 inc VAT)

  Quantity:

  2 - 3

  (£69.06 inc VAT)

  Quantity:

  4 - 7

  (£68.36 inc VAT)

  Quantity:

  8+

  (£67.66 inc VAT)
