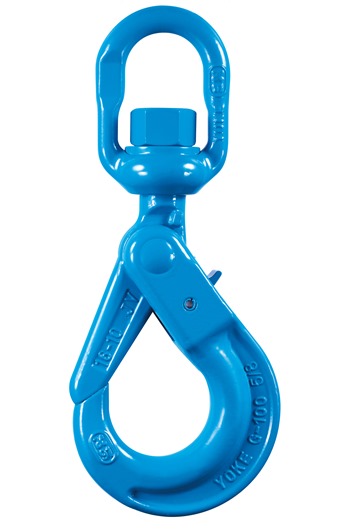

Yoke X-027N G100 Swivel Self Locking Hook with Ball-Bearing

More From This Brand

Add to New List

• Product Info

• Yoke X-027N G100 Swivel Self Locking Hook with Ball-Bearing

  Ball bearing performs to fully swivel under load

  To suit G100 Chain from 6mm to 20mm diameter

  Capacities from 1.4tonne to 16tonne

  Fully certified

  Main features:-

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with EN 1677- 3 and ASME B30.26, ASME B30.10, PAS1061
  • Certified by DGUV GS-OA-15-05
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Tempering temperature minimum 400°C
  • Magnaflux crack detection is performed 100% on each batch
  • Ball bearing performs to fully swivel under load
• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Yoke X-027N G100 Swivel Self Locking Hook with Ball-Bearing to suit 10mm G100 Chain (4tonne) (Net Weight Per Item: 2.00kg):

  Quantity:

  1 - 1

  (£129.62 inc VAT)

  Quantity:

  2 - 3

  (£127.68 inc VAT)

  Quantity:

  4 - 7

  (£126.38 inc VAT)

  Quantity:

  8+

  (£125.09 inc VAT)
  Yoke X-027N G100 Swivel Self Locking Hook with Ball-Bearing to suit 13mm G100 Chain (6.7tonne) (Net Weight Per Item: 4.10kg):

  Quantity:

  1 - 1

  (£186.47 inc VAT)

  Quantity:

  2 - 3

  (£183.67 inc VAT)

  Quantity:

  4 - 7

  (£181.81 inc VAT)

  Quantity:

  8+

  (£179.94 inc VAT)
  Yoke X-027N G100 Swivel Self Locking Hook with Ball-Bearing to suit 16mm G100 Chain (10tonne) (Net Weight Per Item: 7.20kg):

  Quantity:

  1 - 1

  (£314.94 inc VAT)

  Quantity:

  2 - 3

  (£310.22 inc VAT)

  Quantity:

  4 - 7

  (£307.07 inc VAT)

  Quantity:

  8+

  (£303.92 inc VAT)
  Yoke X-027N G100 Swivel Self Locking Hook with Ball-Bearing to suit 20mm G100 Chain (16tonne) (Net Weight Per Item: 13.00kg):

  Quantity:

  1 - 1

  (£605.94 inc VAT)

  Quantity:

  2 - 3

  (£596.85 inc VAT)

  Quantity:

  4 - 7

  (£590.79 inc VAT)

  Quantity:

  8+

  (£584.73 inc VAT)
  Yoke X-027N G100 Swivel Self Locking Hook with Ball-Bearing to suit 6mm G100 Chain (1.4tonne) (Net Weight Per Item: 0.70kg):

  Quantity:

  1 - 1

  (£96.94 inc VAT)

  Quantity:

  2 - 3

  (£95.48 inc VAT)

  Quantity:

  4 - 7

  (£94.51 inc VAT)

  Quantity:

  8+

  (£93.54 inc VAT)
  Yoke X-027N G100 Swivel Self Locking Hook with Ball-Bearing to suit 7/8mm G100 Chain (2.5tonne) (Net Weight Per Item: 1.20kg):

  Quantity:

  1 - 1

  (£110.23 inc VAT)

  Quantity:

  2 - 3

  (£108.58 inc VAT)

  Quantity:

  4 - 7

  (£107.48 inc VAT)

  Quantity:

  8+

  (£106.37 inc VAT)
