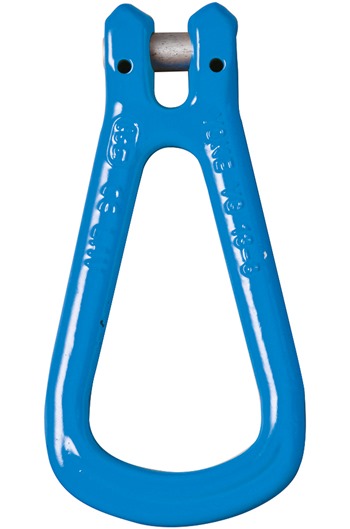

Yoke X-059 G100 Clevis Master/Egg Link

More From This Brand

Add to New List

• Product Info

• Yoke X-059 G100 Clevis Master/Egg Link

  To suit G100 Chain from 7/8mm to 16mm diameter

  Capacities from 2.5tonne to 10tonne

  Fully certified

  Main features:-

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with EN 1677- 1 and ASME B30.26
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Tempering temperature minimum 400°C
  • Magnaflux crack detection is performed 100% on each batch
• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Yoke X-059 G100 Clevis Master/Egg Link to suit 10mm G100 Chain (4tonne) (Net Weight Per Item: 0.80kg):

  Quantity:

  1 - 1

  (£36.34 inc VAT)

  Quantity:

  2 - 3

  (£35.79 inc VAT)

  Quantity:

  4 - 7

  (£35.43 inc VAT)

  Quantity:

  8+

  (£35.06 inc VAT)
  Yoke X-059 G100 Clevis Master/Egg Link to suit 13mm G100 Chain (6.7tonne) (Net Weight Per Item: 1.50kg):

  Quantity:

  1 - 1

  (£54.52 inc VAT)

  Quantity:

  2 - 3

  (£53.70 inc VAT)

  Quantity:

  4 - 7

  (£53.15 inc VAT)

  Quantity:

  8+

  (£52.61 inc VAT)
  Yoke X-059 G100 Clevis Master/Egg Link to suit 16mm G100 Chain (10tonne) (Net Weight Per Item: 2.40kg):

  Quantity:

  1 - 1

  (£84.66 inc VAT)

  Quantity:

  2 - 3

  (£83.39 inc VAT)

  Quantity:

  4 - 7

  (£82.54 inc VAT)

  Quantity:

  8+

  (£81.70 inc VAT)
  Yoke X-059 G100 Clevis Master/Egg Link to suit 7/8mm G100 Chain (2.5tonne) (Net Weight Per Item: 0.40kg):

  Quantity:

  1 - 1

  (£28.79 inc VAT)

  Quantity:

  2 - 3

  (£28.36 inc VAT)

  Quantity:

  4 - 7

  (£28.07 inc VAT)

  Quantity:

  8+

  (£27.78 inc VAT)
