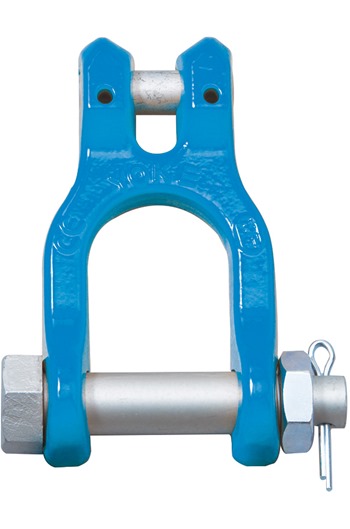

Yoke X-066 G100 Clevis Shackle

More From This Brand

Add to New List

• Product Info

• Yoke X-066 G100 Clevis Shackle

  To suit G100 Chain from 7/8mm to 16mm diameter

  Capacities from 2.5tonne to 10tonne

  Fully certified

  Main features:-

  • Quenched and Tempered Alloy Steel
  • At least 25% greater WLL than traditional G80 products
  • Manufactured in accordance with EN 1677- 1 and ASME B30.26
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured
  • Design Factor 4:1
  • Fatigue rated to 20,000 cycles at 1.5 times the WLL
  • Tempering temperature minimum 400°C
  • Magnaflux crack detection is performed 100% on each batch
• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Yoke X-066 G100 Clevis Shackle to suit 10mm G100 Chain (4tonne) (Net Weight Per Item: 0.80kg):

  Quantity:

  1 - 1

  (£53.03 inc VAT)

  Quantity:

  2 - 3

  (£52.23 inc VAT)

  Quantity:

  4 - 7

  (£51.70 inc VAT)

  Quantity:

  8+

  (£51.17 inc VAT)
  Yoke X-066 G100 Clevis Shackle to suit 13mm G100 Chain (6.7tonne) (Net Weight Per Item: 1.40kg):

  Quantity:

  1 - 1

  (£83.33 inc VAT)

  Quantity:

  2 - 3

  (£82.08 inc VAT)

  Quantity:

  4 - 7

  (£81.24 inc VAT)

  Quantity:

  8+

  (£80.41 inc VAT)
  Yoke X-066 G100 Clevis Shackle to suit 16mm G100 Chain (10tonne) (Net Weight Per Item: 2.40kg):

  Quantity:

  1 - 1

  (£141.74 inc VAT)

  Quantity:

  2 - 3

  (£139.62 inc VAT)

  Quantity:

  4 - 7

  (£138.20 inc VAT)

  Quantity:

  8+

  (£136.78 inc VAT)
  Yoke X-066 G100 Clevis Shackle to suit 7/8mm G100 Chain (2.5tonne) (Net Weight Per Item: 0.40kg):

  Quantity:

  1 - 1

  (£41.18 inc VAT)

  Quantity:

  2 - 3

  (£40.57 inc VAT)

  Quantity:

  4 - 7

  (£40.15 inc VAT)

  Quantity:

  8+

  (£39.74 inc VAT)
