2000kg Pneumatic Air Lifting Hoist 3mtr to 10mtr Lifting Height

Additional Information


*Specifications and prices may change from time to time so please confirm before placing your order.

2000kg Pneumatic Air Lifting Hoist 3mtr to 10mtr Lifting Height

Product Code: RR-TCR2000-2

0 Review(s)


Price Breaks:
See all quantity price breaks Click here for Net Weight

 Exclusive Web Only Price!

Was: £5,385.67 £4,488.06 (ex VAT)
Now: £4,488.06 Each inc VAT
(£3,740.05 ex VAT)
Phone
Order Price
£4,532.94
Each inc VAT
(£3,777.45 ex VAT)
Options:
Qty:
Quantity:
1+
£3,740.05 ex Vat

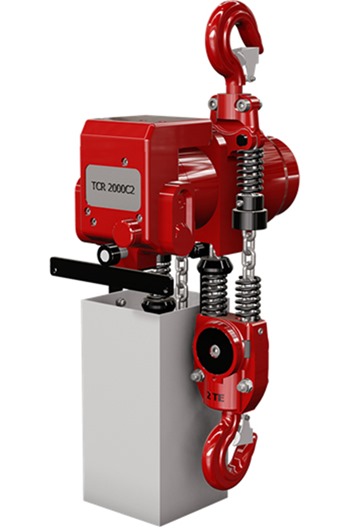

RED ROOSTER TCR-2000/2 2000kg PNEUMATIC AIR LIFTING HOIST

The TCR-2000/2 Air Hoist is the ideal choice for lifting applications that require fast lifting speeds, consistant use or simply where there is no access to power

Powered by a compressed air feed means this Hoist has a 100% duty cycle so is perfect for constant use

The Hoist is operated by cord control which is attached to a bracket on the Hoist valve

ATEX zone 2 specification

Lifting heights: 3mtr to 10mtr (please contact us for longer lifting heights)

Compact and lightweight body, aluminium housing

Features:-

  • Model: TCR-2000/2
  • SWL: 2000kg
  • Lifting heights available: 3mtr to 10mtr (please contact us for longer lifting heights)
  • Chain falls: 2
  • Chain size: 7.1 x 21mm
  • Control type: Cord control (pendant control available - please contact us for details)
  • Lifting speed (full load): 3mtrs/min
  • Lifting speed (no load): 5.7mtrs/min
  • Lowering speed (with load): 5.2mtr/min
  • Air consumption: 25litres/second @ 6.3 Bar
  • Air connection: 1/2" BSP, min hose dia 1/2"
  • Working pressure: 6 Bar
  • Failsafe automatic internal disc brake
  • Upper & lower limit switches
  • ATEX zone 2 specification
  • Fully certified
  • PVC Chainbag included
  • Weight with 3mtr HOL:39.7kg
  • Weight per addtional metre HOL: 2.2kg

DELIVERY IS 2-3 DAYS FROM DATE OF ORDER

TCR-2000/2 2000kg x 10mtr Air Hoist (Net Weight Per Item: 55.10kg):
Quantity:
1+
(£4,008.05 ex Vat)
TCR-2000/2 2000kg x 3mtr Air Hoist (Net Weight Per Item: 39.70kg):
Quantity:
1+
(£3,740.05 ex Vat)
TCR-2000/2 2000kg x 4mtr Air Hoist (Net Weight Per Item: 41.90kg):
Quantity:
1+
(£3,764.05 ex Vat)
TCR-2000/2 2000kg x 5mtr Air Hoist (Net Weight Per Item: 44.10kg):
Quantity:
1+
(£3,788.05 ex Vat)
TCR-2000/2 2000kg x 6mtr Air Hoist (Net Weight Per Item: 46.30kg):
Quantity:
1+
(£3,812.05 ex Vat)
TCR-2000/2 2000kg x 7mtr Air Hoist (Net Weight Per Item: 48.50kg):
Quantity:
1+
(£3,936.05 ex Vat)
TCR-2000/2 2000kg x 8mtr Air Hoist (Net Weight Per Item: 50.70kg):
Quantity:
1+
(£3,960.05 ex Vat)
TCR-2000/2 2000kg x 9mtr Air Hoist (Net Weight Per Item: 52.90kg):
Quantity:
1+
(£3,984.05 ex Vat)
