Abtech Safety CST8KIT Confined Space Tripod Kit with 30mtr Fall Arrest Recovery Winch & Rescue Harness

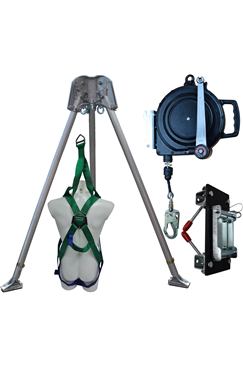

Abtech Safety CST8KIT Confined Space Tripod Kit

This Confined Space Tripod Kit comprises of the following:-

T3 Tripod

The tripod is the basis of a confined space entry and rescue system giving a strong, stable and portable anchorage point for fall arrest and recovery systems. One worker can carry and erect the sturdy but lightweight aluminium alloy tripod

For stability, the tripod legs may be individually adjusted

The T3 has 6 anchor points tested to EN795. The 3 overhead pulleys hold up to 11mm rope. The extra anchor points may be used with pulleys for a double roped rescuer, back-up system, airlines, communication lines, medical kits, tools etc

Features:-

• Designed for 2 persons, SWL 250Kg 6:1 safety ratio
• 3x Overhead Pulleys
• 3x Underslung Eyes
• Adjustable from 140cm - 240cm
• Leg span: 110cm - 170cm
• Certified to EN795 Type B
• Weight: 19.4kg

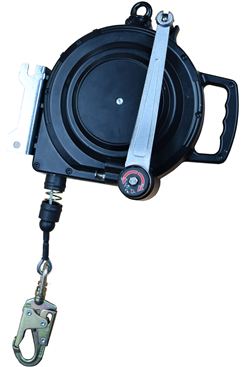

AB30RT 30mtr Fall Arrest Winch

This 30mtr Fall Arrest Recovery Device is designed to provide fall protection from falls from height

Anchored above the user, it gives the user a safe area of work

The retracting line pays in and out of the device as the user moves

In the event of a fall, a brake engages, arresting the fall of the user with a controlled deceleration force

The AB30RT has an integral winch mechanism, so in the event of a fall, the top man will be able to raise or lower the user to a safe area

Cable: 30mtr x 4.8mm Galvanised Steel

Maximum user weight: 140kg

Weight: 23kg

Conforms to EN360, EN1496

T05T Bracket

The T05T Bracket attaches the AB30RT Winch to the T3 Tripod

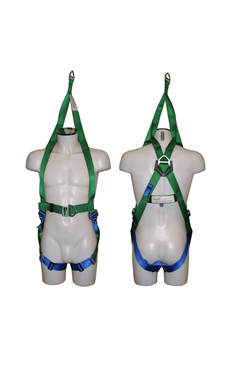

+ ABRES Rescue Harness
