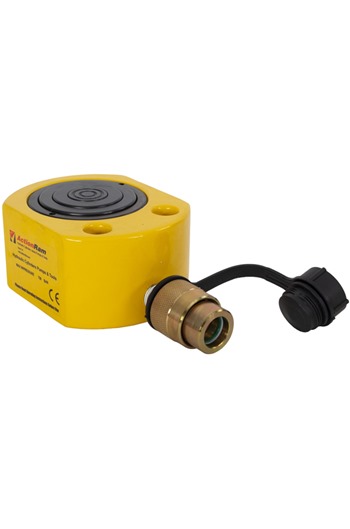

The ActionRam HHYG-100D Hydraulic Telescopic Low Height Pad Jack is a compact, high-performance lifting solution designed for precision tasks in tight and confined spaces. Whether you’re aligning machinery, positioning equipment, or securing heavy tools, this jack offers the power and reliability needed in industrial, construction, and maintenance applications
Key Features

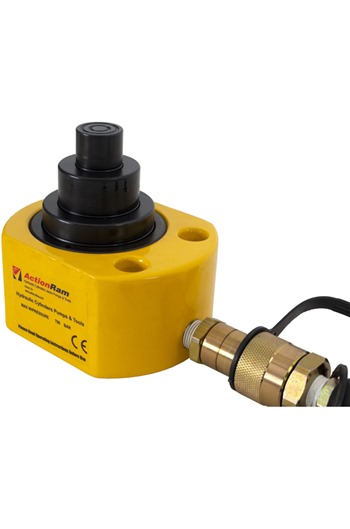

- Three-Stage Telescopic Lift: The jack features a three-stage hydraulic lift that provides a progressive lifting stroke:-
- Stage 1: Lifts up to 100.2tonne with a 15mm stroke
- Stage 2: Lifts up to 30.9tonne with a 30mm stroke
- Stage 3: Lifts up to 11.1tonne with a 24mm stroke
- Total stroke: 69mm, allowing flexibility in varying lift requirements
- Low Profile Design: With a closed height of just 93mm, this jack is engineered for use in areas with limited vertical clearance, such as under heavy machinery or inside compact mechanical spaces
- Durable Construction: Manufactured with high-grade materials, the cylinder body and ram are chrome plated to resist corrosion and wear, ensuring long service life even in harsh environments
- High-Pressure Operation: Built to handle pressures up to 700 BAR, this Jack delivers powerful performance in lifting and pressing applications
- Easy Hydraulic Integration: Comes pre-fitted with a female hydraulic coupling, making it quick and easy to connect to a compatible hydraulic pump
- Built-In Mounting Holes: Designed for easy and secure mounting, the jack includes holes for permanent or temporary fixture setups
- Reliable and Safe: Each unit is fully factory tested to ensure maximum safety, performance, and reliability in real-world conditions
- Warranty Protection: Includes a 12-month manufacturer’s warranty for peace of mind and guaranteed quality assurance
Specifications
- Model: HHYG-100D
- Lifting capacity: 100.2tonne (stage 1), 30.9tonne (stage 2), 11.1tonne (stage 3)
- Total stroke: 69mm (15mm stage 1, 30mm stage 2, 24mm stage 3)
- Open height: 162mm
- Closed height: 93mm
- Outer diameter: 188mm x 160mm
- Oil capacity: 418cc
- Maximum working pressure: 700 Bar (10,000 PSI)
- Weight: 16.9kg
Recommended Accessories
- Hydraulic Hand Pump: HHB-700
Applications
- Heavy machinery installation and maintenance
- Steel structure alignment
- Bridge bearing replacement
- Construction jacking tasks
- Precision lifting in confined areas
- Workshops
