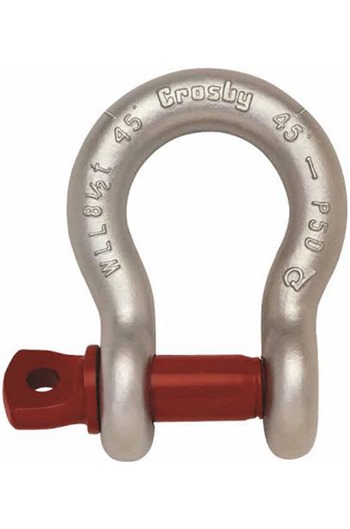

Crosby G-209 6.5ton Screw Pin Alloy Bow Shackle

More From This Brand

Add to New List

• Product Info

• Crosby G-209 6.5ton Screw Pin Alloy Bow Shackle

  Grade 6 high tensile steel, quenched and tempered

  G-209 Screw Pin Shackles meet the performance requirements of Federal Specifications RR-C-271F Type IVA, Grade A, Class 2 except for those provisions required of the contractor

  Hot dipped Galvanised

  Working load limit and grade "6" permanently shown on every Shackle

  Look for the Red Pin.....the mark of genuine Crosby quality

  Part number: 1018516

  WLL: 6.5ton

  Pin diameter: 25.4mm

  Jaw width: 36.6mm

  Internal length: 84mm

  Weight: 1.64kg

  Fully certified

• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Crosby G-209 6.5ton Screw Pin Alloy Bow Shackle (Net Weight Per Item: 1.64kg):

  Quantity:

  1 - 9

  (£23.23 inc VAT)

  Quantity:

  10 - 19

  (£22.83 inc VAT)

  Quantity:

  20 - 29

  (£22.67 inc VAT)

  Quantity:

  30 - 49

  (£22.47 inc VAT)

  Quantity:

  50+

  (£22.26 inc VAT)
