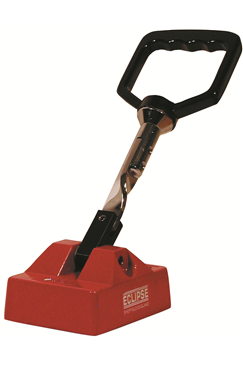

Eclipse Magnetics E964 Steel Plate Drag

Eclipse Magnetics E964 Steel Plate Drag

The Steel Plate Drag is used to remove ferrous steel sheets and plate from a stack and for transporting ferrous sheets and plates to and from machines. The lever can be positioned to operate a quick release mechanism to force the Steel Plate Drag to push the steel sheet or plate off the magnetic clamping surface

It has a rated drag force of up to 50kg or 100lb. This value is less than its maximum pull force rating. Do not use this product as a Lifter

The Steel Plate Drag handle has an elliptical profile (snail cam shape) at its base. When the handle is moved in the other direction, the release mechanism is not activated so the ferrous plate or sheet can be dragged as required by the user. But when it is moved in the other direction, it starts to push down on a spring mounted release bolt mechanism. When this bolt mechanism starts to press downwards the ferrous steel component it is connected to begins to be pushed away causing the magnetic hold to be prised away allowing a quick and safe release of the hold

It has multiple poles on its clamping surface allowing very high clamping forces to be created to allow a great drag ability as well. The Steel Plate Drag has a holding force capability of up to 170kg (374lb) pull force rating. The drag force rating is less than the pull force rating and is dependent on factors which also includes friction levels. The Steel Plate Drag has a drag force rating of up to 50kg or 100lb. The actual pull force and drag force achieved depends on the ferrous material being held and this varies with factors such as material type- the actual pull force and drag force achieved is application specific

Benefits:-

• Up to 50kg drag force
• Up to 170kg holding force
• Quick release mechanism
• Multiple pole on clamping face for maximum performance
• Transport ferrous plate and sheet by dragging method

Model: E964

Dimensions: 118mm (L) x 98mm (W) x 62mm (H)

Drag force: 50kg

Pull force: 170kg

Weight: 2.8kg
