Green Pin 9.5ton Safety Pin "Polar" Bow Shackle

More From This Brand

Add to New List

• Product Info

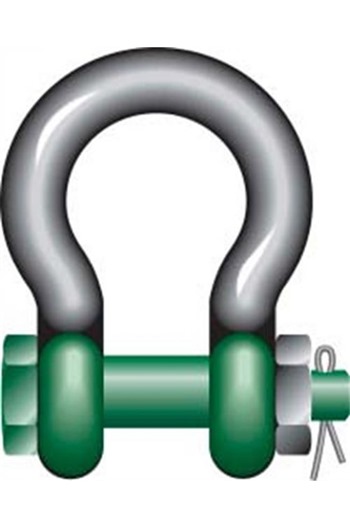

• Green Pin 9.5ton Polar Safety Pin Bow Shackle

  For use in extereme conditions from -60°c up to +200°c

  Material: Grade 8 Alloy Steel body and pin, quenched and tempered

  Safety factor: MBL equals 8 x WLL

  Standard: EN 13889, ASME B30.26 and meets performance requirements of US Fed Spec. RR-C-271 Type IVA Class 3, Grade A

  Finish: Hot dipped galvanised

  Supplied with relevant certification

  WLL: 9.5ton

  Pin diameter: 32mm

  Jaw width: 47mm

  Internal length: 108mm

  Weight: 3.66kg

• Specifications
• Additional Info
  Additional Information

  Data sheet
• Price Breaks
• Green Pin 9.5ton Polar Safety Pin Bow Shackle (Net Weight Per Item: 3.66kg):

  Quantity:

  1+

  (£72.70 inc VAT)
