Multi-Purpose Tripod & Gantry for confined space entry, rescue and lifting.

Product Code: GFTM12-SPIDER

0 Review(s)


Price Breaks:
See all quantity price breaks Click here for Net Weight

 Exclusive Web Only Price!

£1,593.72 Each inc VAT
(£1,328.10 ex VAT)
Phone
Order Price
£1,629.58
Each inc VAT
(£1,357.98 ex VAT)
Qty:
Quantity:
1+
£1,328.10 ex Vat

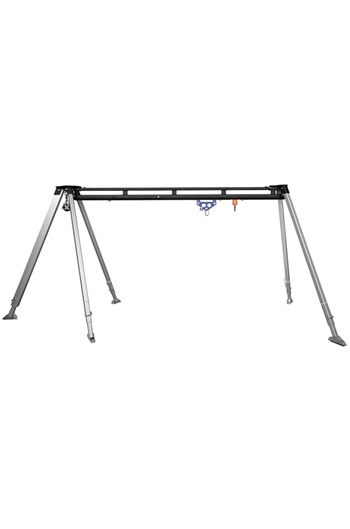

The G-force TM12 Aluminium Multi-Purpose Tripod & Gantry is designed to be Lightweight and highly portable as the TM12 can be dismantled into 3 key components to allow for easy transportation between sites.

This product capable of being used in complete form, with gantry or on its own for confined Space working for Man Riding up to 140kg or for materials lifting or lowering of up to 1000kg when used with the correct winch.

Designed to be fully adjustable in both length & height the tripod’s legs are constructed entirely of aluminium featuring a 7-step adjustment for flexible adaptation of the device’s height to desired conditions.

Equipped with gripping thorns on the tripods feet which provide anti-slip function for added traction when operating on slippery surfaces, with added security measures provided by the Safety Locking Pins which prevent movement of beam trolley during use.

The TM12 is to be used in cnojustion with the P10R Rescue Harness (Supplied Separately)

This Product is supplied fully tested and certified with a 2 Year Warranty.

Set Consists of:

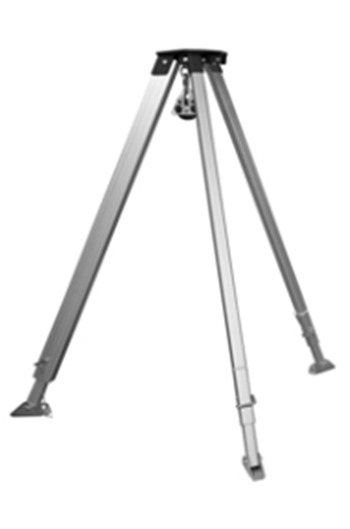

  • 1x Main Tripod
  • 1x Top Beam
  • 1x 2-Legged Support
  • 1x Double Trolley (on Beam)
  • 1x Single trolley (on Beam)
  • 1x 1000kg Alloy Bow Shackle

Product Features:

  • Lightweight & Portable
  • Can Be Dismantled into 3 key components
  • Suitable for Man Riding 140kg / Materials lifting of 1000kg with correct winch
  • Safety Locking Pins for Beam Trolley
  • Antil-Slip Feet
  • Product Weight: 72kg


Shipping Dimensions: (L) 2540mm x (W) 330mm x (H) 340mm



Multi-Purpose Tripod & Gantry for confined space entry,rescue and lifting. (Net Weight Per Item: 72.00kg):
