Pfaff HX300 300kg Scissor Lift Platform Table

More From This Brand

Add to New List

• Product Info

• Pfaff HX300 300kg Scissor Lift Platform Table

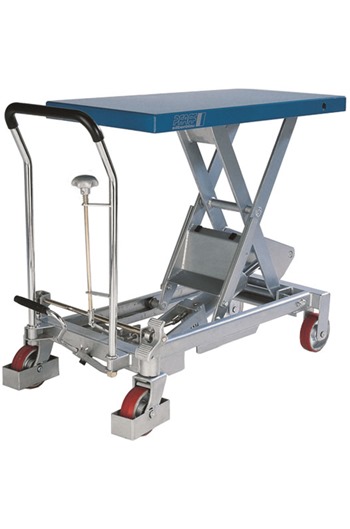

  The Pfaff HX300 is a Hydraulic Workshop Platform with adjustable height, suitable for all manufacturing, packing and workshop applications

  Hydraulic foot pump lifts the Table with minimal effort

  Lowering action is via a release cable, this safely lowers the load

  The lockable wheel feature adds stability and safety to the Platform Table

  Robust construction with hard chromium plated piston and pressure relief valve

  Model: HX300

  Lifting capacity: 300kg

  Rollers: Polyurethane

  Overall unit height: 984mm

  Overall unit length: 1093mm

  Max height of platform: 880mm

  Min height of platform: 285mm

  Platform length: 850mm

  Platform width: 500mm

  Floor/ground clearance: 53mm

  Lift height per stroke: 31mm

  Weight: 78kgs



• Specifications
• BrandPFAFF

  Product Weight78kg

  Product ColourSilver & Navy

  Material.

  Maximum Lift Height880mm

  Lift Range595mm

  Closed Height285mm

  Ground Clearance53mm

  Handle Height.

  Overall Height984mm

  Overall Length1093mm

  Overall Width500mm

  Platform Length850mm

  Platform Width500mm

  Platform Thickness.

  W.L.L.300kg

  OperationManual

  Foot Pedal Cycle to Maximum Lift.

  Lift Height per Pedal Cycle31mm

  Lift Time.

  Lowering Time.

  Wheel Material Polyurethane

  Wheel Type.

  Wheel Diameter128mm

  Wheel Width40mm

  Available for Hire.

  CE / UKCA Marked.

  Conforms to EN Standard.

  Certification Supplied.

  Inspection Period (From date of first use).

  Warranty.

  Custom Made ProductNo

  Included in Return Policy No

  Third Party Supplied Yes

  Additional Information

  Data Sheet
