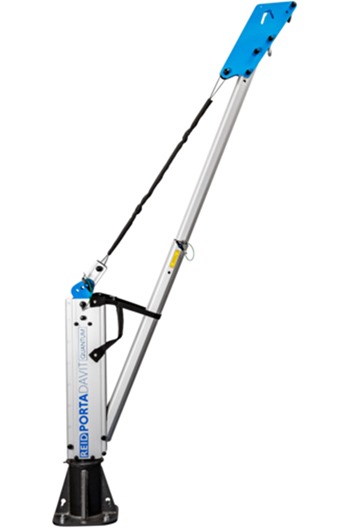

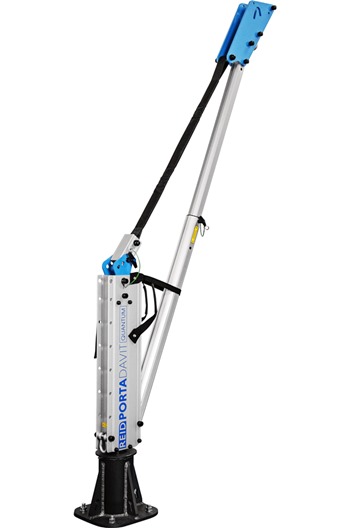

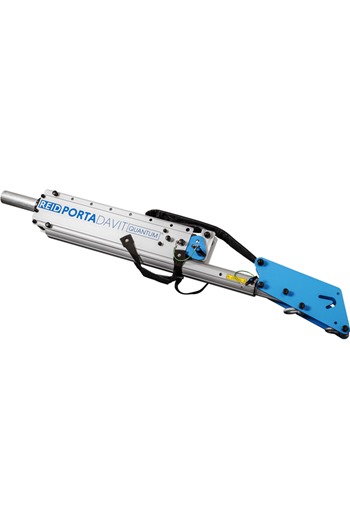

Reid Porta-Davit Quantum Stropped 1200mm Radius WLL:600kg

More From This Brand

Add to New List

• Product Info

• Reid Porta-Davit Quantum Stropped WLL:600kg

  The Porta-Davit QUANTUM is a rapidly deployable, lightweight solution to the heavy lifting and lowering of goods and personnel

  Weighing 18.5kg, it can be manually opearted by just one person while maintaining a lifting capacity of up to 600kg

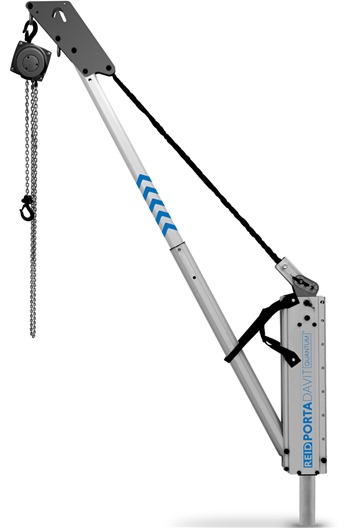

  Manual or electric chain hoists can be hooked from the shackles on the head of the PDQ

  Can be supplied with or without STMG0500VS Galvanised 65mm dia Top Mount Davit Socket

  Key features:-

  • EN795:2012 & ATEX Certified
  • Fall arrest capacity - 1 user
  • Personnel capacity up to 300kg and goods capacity up to 600kg
  • Three radius adjustment points
  • Double shackle head for easy attachment of accessories
  • Ease of assembly with the use of just one pin, no tools required
  • Can be rotated 360° under a full load
  • Clean, anodised finish for increased corrosion resistance
  • Designed with a universal kingpin suitable for use with the Reid 65mm range of sockets
  • Product code: PDQ1S
  • Max height of lift: 2111mm
  • Max radius: 1200mm
  • Davit weight: 18.5kg

  *** Chainblock and accessories sold separately ***



• Specifications
• Additional Info
  Additional Information

  Data Sheet
• Price Breaks
• Reid Porta-Davit Quantum Stropped WLL:600kg (Net Weight Per Item: 18.50kg):

  Quantity:

  1+

  (£1,747.14 inc VAT)
  Reid Porta-Davit Quantum Stropped WLL:600kg c/w Top Mount Socket (Net Weight Per Item: 27.50kg):

  Quantity:

  1+

  (£1,991.50 inc VAT)
