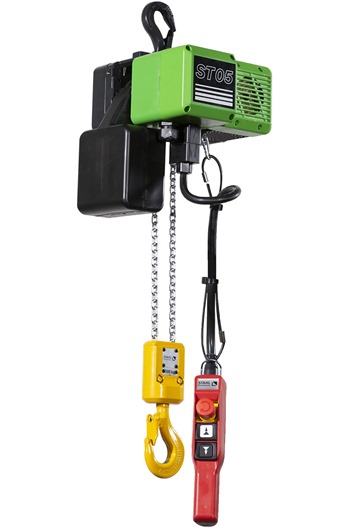

Stahl ST 25-kg 400volt Electric Chain Hoist
The ST chain hoist programme ranks among the world’s most distinctive and extensive ranges on offer. Users, crane manufacturers and systems manufacturers appreciate the robust classic which proves itself in operation day for day. It is powerful, reliable and undemanding as regards maintenance and power consumption. The supervised series production of the standard components brings you economic advantages. And, in conjunction with the precise manufacture of off-standard components, the ST chain hoist is an acknowledged top level quality product
Key features:-
- Suspension directly from the chain guide of solid cast iron
- Easy inspection and maintenance of the chain drive thanks to overmounted drive shaft
- Extremely short and compact construction ensures that space can be utilised to the maximum
- High ISO classification according to FEM/ISO standards
- Available as an option in explosion-protected design complying with ATEX and IECEx
Specifications:-
- Capacity: 250kg
- Hoist type: ST0502-8/2
- Single Fall
- Dual speed 8/2 m/min
- Supply voltage: 400v 3phase 50hz
- 48V low voltage wired Scheider controls
- 1.8mtr long, plug in design IP65 rated control pendant
- Slack chain collector included
- Hoist enclosure protection to IP55
- Hoist overload protection via slipping clutch
- Electro-galvanised loadchain
- Net weight based on 3mtr lifting height: 18kg
- Custom or longer lifting heights available - please contact us for a price
0117 9381 600
DELIVERY IS 2-3 DAYS FROM DATE OF ORDER (Supplied Direct from Manufacturer Partner)
