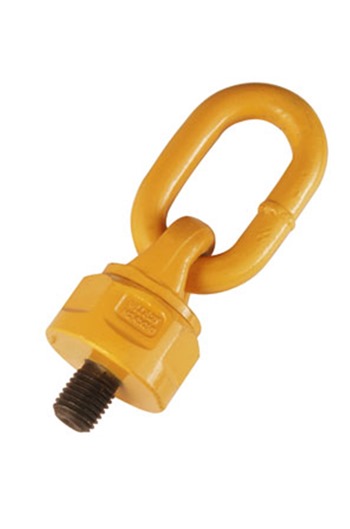

Swivel Lifting Point Sizes From 8mm to 36mm Available

More From This Brand

Add to New List

• Product Info

• Our high-strength swivel eyebolts (lifting points) are designed for secure and efficient lifting applications across a wide range of loads. These units feature a fully rotational swivel design that allows for lifting from various angles, while maintaining a high Working Load Limit (WLL). Ideal for overhead lifting, rigging, and load securing in industrial, construction, and marine environments

  Product Dimensions

  ---

  Thread Diameter	Thread Length	WLL @ 0°	WLL @ 90°
  8mm	13mm	600kg	300kg
  10mm	18mm	900kg	450kg
  12mm	18mm	1tonne	500kg
  16mm	20mm	2tonne	1.12tonne
  20mm	30mm	4tonne	2tonne
  24mm	30mm	6.3tonne	3.15tonne
  30mm	35mm	10.6tonne	5.3tonne
  36mm	50mm	11.8tonne	8tonne

  Key Features

  ---

  • Lifting Capacities Side Load (90°): Ranges from 0.3 tonne up to 8 tonnes
  • Lifting Capacities Vertical Lift (0°): Ranges from 0.6 tonne up to 11.8 tonnes
  • Thread sizes: From M8 to M36
  • Longer thread lengths available
  • Fully certified
  • Please refer to the product specification sheet for full dimensional drawings and technical details
• Specifications
• Additional Info
  Additional Information

  Instructions for Safe UseData Sheet
• Price Breaks
• 10mm Swivel Lifting Point (Net Weight Per Item: 0.43kg):

  Quantity:

  1+

  (£18.05 inc VAT)
  12mm Swivel Lifting Point (Net Weight Per Item: 0.44kg):

  Quantity:

  1+

  (£20.48 inc VAT)
  16mm Swivel Lifting Point (Net Weight Per Item: 0.46kg):

  Quantity:

  1+

  (£22.52 inc VAT)
  20mm Swivel Lifting Point (Net Weight Per Item: 0.96kg):

  Quantity:

  1+

  (£37.52 inc VAT)
  24mm Swivel Lifting Point (Net Weight Per Item: 1.45kg):

  Quantity:

  1+

  (£55.61 inc VAT)
  30mm Swivel Lifting Point (Net Weight Per Item: 2.17kg):

  Quantity:

  1+

  (£79.28 inc VAT)
  36mm Swivel Lifting Point (Net Weight Per Item: 2.60kg):

  Quantity:

  1+

  (£114.05 inc VAT)
  8mm Swivel Lifting Point (Net Weight Per Item: 0.41kg):

  Quantity:

  1+

  (£18.05 inc VAT)
