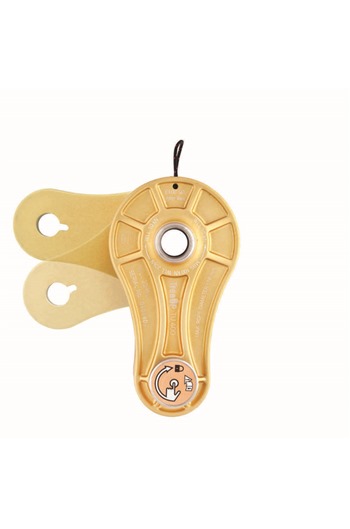

TU400 100kN Quick Release Rigging Pulley

The TU400 is a heavy duty lowering pulley

Swivelling side plates allow easy installation midline with a 1/2 turn thumb screw to secure in closed position

The block features a hollow bore on the large lower sheave which can be utilised for a secondary positioning line to rig the pulley away from the trunk or a speed line system

For use with ropes up to 18mm diameter, never for use with a steel cable

Conforms to EN12278:2007

Model: TU400

Dimensions: 176 x 96 x 88mm

MBS: 100 kN

WLL: 20 kN

Safety factor: 5:1
