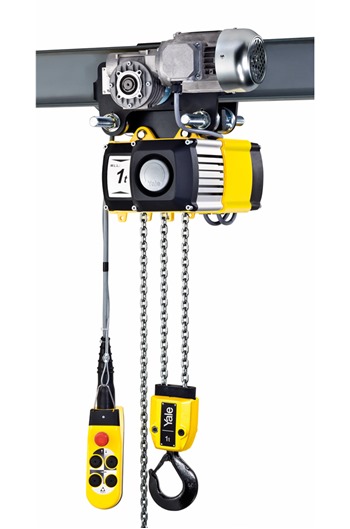

YALE 250kg 3phase Electric Hoist with Powered Trolley

Product Code: CM-CPV2-8-ET-RS
Product Info
Specifications
Price Breaks

YALE CPV2-8 250kg 3phase Electric Chain Hoist c/w Powered Trolley

SWL: 250kg

Falls of chain: 1

Hoist speed: 8mtrs/min

Avaible from 3mtr HOL to 15mtr HOL

Single speed Powered Trolley (18mtrs/min)

The new YALE CPV Electric Chain Hoist combines modern design and technical innovation.  This 250kg hoist has a robust construction that makes it a versatile tool for industrial applications.  Upper and lower limit switches considerably extend the working life span of the slipping clutch, motor and gearbox

Features include:-

  • Load sprocket and chain guide can easily be inspected or removed, without disassembly of the complete unit
  • Designed to FEM 1am. H3 (HMI)
  • Main line contactor for increased safety
  • Duty cycle 50% ED for single speed
  • Electromagnetic spring pressure brake holds the load safely even in the event of power failure
  • The externally adjustable slip clutch is designed to guarantee a permanent connection betweem the load and the brake
  • Motor classification H3 and protected to IP 55 against ingress of dust and water jets
  • Standard operating voltage: 400V, 3Ph, 50hz
  • Increased operating safety through 42v low voltage control with encapsulated pendant control to IP 65
  • Price includes Chainbag
  • Fully tested and certified

  Exclusive Web Only Price!

Option code: CM-CPV2-8-ET-RS-3M
Was:
£3,223.40£2,686.16 (ex VAT)
Now:
£2,238.47
(£1,865.39 ex VAT)
