YALE ERGO 360 750kg Ratchet Leverhoist

Product Code: CM-ERGO-750-RS

0 Review(s)


Price Breaks:
See all quantity price breaks Click here for Net Weight

 Exclusive Web Only Price!

Was: £431.97 £359.98 (ex VAT)
Now: £359.98 Each inc VAT
(£299.98 ex VAT)
Phone
Order Price
£370.78
Each inc VAT
(£308.98 ex VAT)
Options:
Qty:
Quantity:
1+
£299.98 ex Vat

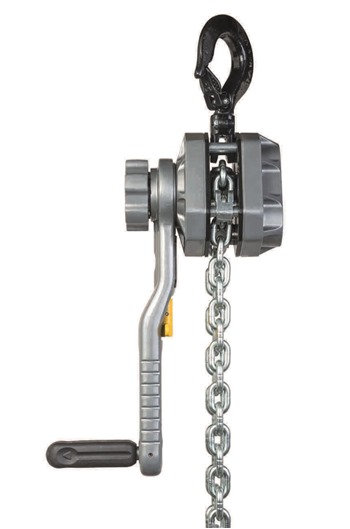

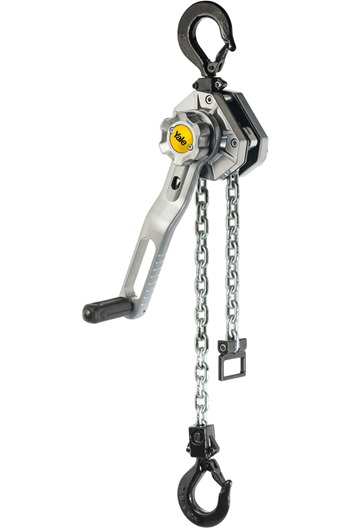

YALE ERGO 360 750kg RATCHET LEVERHOIST

Redefing lever-operated hoists, the Yale ERGO 360 features the revolutionary crank handle that allows for effiecient operation in both lifting and pulling applications

Ergonmically designed for increased safety, the patent-pending Yale ERGO 360 lets the operator to work up to 12 times faster and with as much as 30% less pull force than conventional ratchet lever tools

BENEFITS & FEATURES

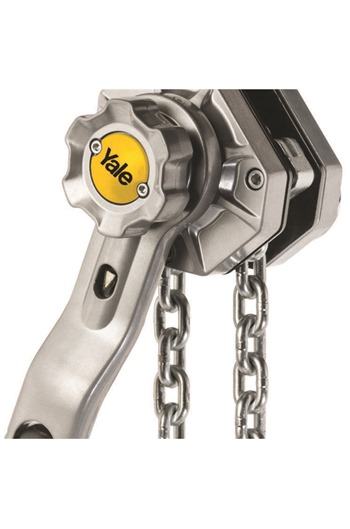

  • Crank Handle - this first-of-its-kind lever handle design will revolutionize the ratchet lever hoist industry.  Its unique foldable lever handle and 360degree rotation action increases productivity while reducing the risk of operator injury
  • Convenient directional indicator - Easy-to-use, highly visible directional indicator located on the handle clearly shows the operating direction as listing, lowering or neutral
  • Easy & Smooth free chaining - For quick take up and positioning of slack chain - even with one hand.  Designed not to be accidently free chain while under load.  Cast chain end stop allows the user to easily position the chain in free-chaining mode and prevents it from entering the liftwheel and jamming the hoist
  • Positive load control - Enclosed Weston-type brake stays clean and dry for precise load positioning
  • Built to last - Lightweight aluminium housing withstands rigorous use and features high-quality, long-lasting bearings.  Powder coat finish provides extra protection in harsh environments
  • Excellent corrosion protection - Robust chain giude and chain stripper made from cast steel and zinc-plated for corrosion protection
  • Easy-to-inspect Swivel Hooks - Bolt on Hooks with nylon locks simplify the inspection (process).  Hooks are forged, allowing them to yield under overload without breaking.  Cast safety latches provide positive and secure load engagement
  • Easy identification - Each unit has a unique serial number for easy and accurate identification

SWL: 750kg

Number of chain falls: 1

Chain dimensions: 5.6 x 17.1

Lift with one full lever turn: 27.2mm

Handle pull at WLL: 20daN

Available in 1.5mtr, 3mtr, 4mtr & 6mtr HOL

PLEASE NOTE: DELIVERY IS 2-3 DAYS FROM DATE OF ORDER

YALE ERGO 360 750kg Ratchet Leverhoist HOL:1.5mtr (Net Weight Per Item: 6.60kg):
Quantity:
1+
(£299.98 ex Vat)
YALE ERGO 360 750kg Ratchet Leverhoist HOL:3mtr (Net Weight Per Item: 8.50kg):
Quantity:
1+
(£316.48 ex Vat)
YALE ERGO 360 750kg Ratchet Leverhoist HOL:4mtr (Net Weight Per Item: 10.20kg):
Quantity:
1+
(£327.48 ex Vat)
YALE ERGO 360 750kg Ratchet Leverhoist HOL:6mtr (Net Weight Per Item: 12.00kg):
Quantity:
1+
(£349.48 ex Vat)
