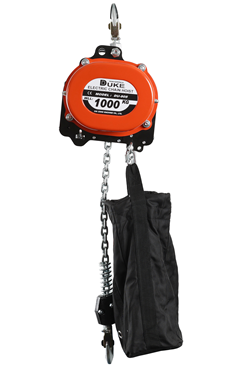

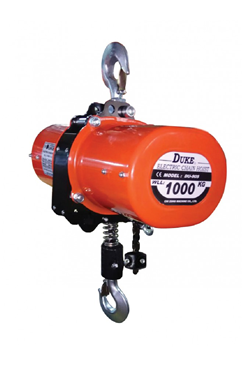

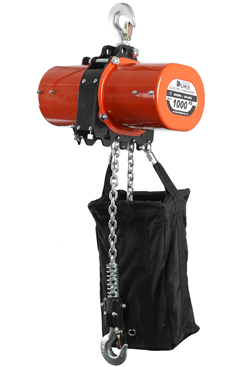

1tonne 415volt 3phase Single Fall Electric Chain Hoist

This Duke DU905 415v Hoist has a WLL (weight load limit) of 1 tonne. It operates at 415volts (3-phase), making it ideal for light industrial use

Single fall of Chain

Various lift heights are available, ranging from 3mtr - 10mtr (select from drop-down list). This product has a lifting speed of 6 metres per minute

Our 415v hoist is lightweight and compact, making it easy to transport and suitable for a number of different lifting applications. The heavy-duty modular design also makes upkeep of the hoist very easy, while also extending the overall service life of the product.

This hoist comes supplied with:

• A 3 mtr pendant control with emergency stop
• A chainbag
• A power supply cable and plug (1.5mtrs)
• Swivel top and bottom hooks

The duty cycle of the hoist is 40%, which means that it can be used for a maximum of 24 minutes continued operation in a 1 hour period

Current at rated load (amp): 2.25

The frame and control enclosure provide protection against dust and water ingress.  It has an official enclosure rating of IP54

The 415v 1 tonne hoist is supplied fully tested and certified, and comes with a 12 month warranty

This hoist is not suitable for constant use in a production facilty enviroment

Please view our full selection of electric hoists before making your selection. Make sure you have chosen the correct WLL for your needs

*Please contact us if you require a longer pendant
