Pewag PLDW Prolift Delta Swivel Lifting Point M10 to M48

More From This Brand

Add to New List

• Product Info

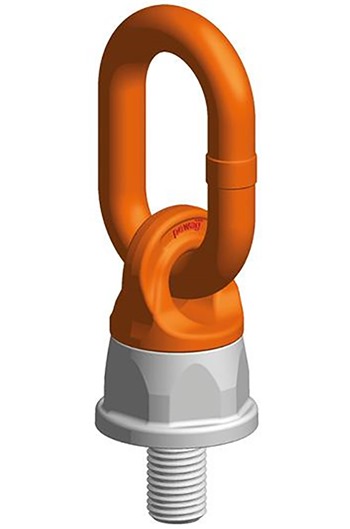

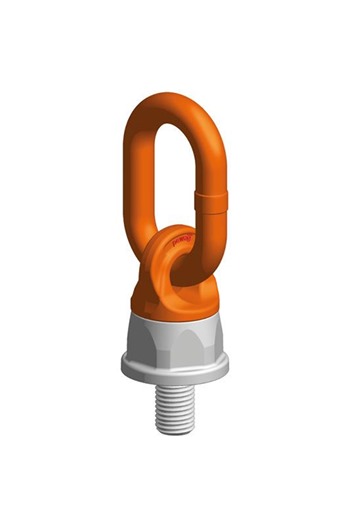

• The Pewag Profilift PLDW lifting and lashing point utilizes a ball bearing which allows the unit to be rotated 360° even under load. A high strength free moving lifting eye is incorporated in the design and is movable by 180° and is wide enough to accommodate larger hook sizes. The special screw is 100% crack-tested, protected against corrosion and marked with the load capacity and thread size

  In addition, each lifting point is marked with its own individual serial number providing full traceability. The PLDW range is available with metric threads and can also be supplied with long (max.) or custom bolt lengths which are supplied with a special 100% crack detected prevailing torque type locking nut and washer to DIN 980-V (PLMS)

  All load capacities, categorised by method of lifting, number of legs and angle of inclination are contained in a table that forms an integral part of the operating manual included with each lifting point. The Pewag Winner Profilift Delta lifting points are marked with the admissible load capacity for the most unfavourable application mode, allowing for an increased load capacity in case of vertical loads and a 4:1 factor of safety against break in all directions

  Metric thread sizes available: M10, M12, M14, M16, M20, M24, M30, M36, M42, M48

  *** Longer threads available - please contact us for details ***



• Specifications

• Additional Information

  DimensionsLoading Chart
• Price Breaks
• Pewag PLDW M10 Prolift Delta Swivel Lifting Point 500kg (Net Weight Per Item: 0.45kg):

  Quantity:

  1 - 3

  (£85.74 inc VAT)

  Quantity:

  4 - 7

  (£83.60 inc VAT)

  Quantity:

  8+

  (£81.45 inc VAT)
  Pewag PLDW M12 Prolift Delta Swivel Lifting Point 700kg (Net Weight Per Item: 0.48kg):

  Quantity:

  1 - 3

  (£86.10 inc VAT)

  Quantity:

  4 - 7

  (£83.95 inc VAT)

  Quantity:

  8+

  (£81.80 inc VAT)
  Pewag PLDW M14 Prolift Delta Swivel Lifting Point 1000kg (Net Weight Per Item: 0.49kg):

  Quantity:

  1 - 3

  (£89.10 inc VAT)

  Quantity:

  4 - 7

  (£86.87 inc VAT)

  Quantity:

  8+

  (£84.65 inc VAT)
  Pewag PLDW M16 Prolift Delta Swivel Lifting Point 1500kg (Net Weight Per Item: 0.51kg):

  Quantity:

  1 - 3

  (£91.14 inc VAT)

  Quantity:

  4 - 7

  (£88.86 inc VAT)

  Quantity:

  8+

  (£86.58 inc VAT)
  Pewag PLDW M20 Prolift Delta Swivel Lifting Point 2500kg (Net Weight Per Item: 1.10kg):

  Quantity:

  1 - 3

  (£107.70 inc VAT)

  Quantity:

  4 - 7

  (£105.01 inc VAT)

  Quantity:

  8+

  (£102.32 inc VAT)
  Pewag PLDW M24 Prolift Delta Swivel Lifting Point 4000kg (Net Weight Per Item: 1.50kg):

  Quantity:

  1 - 3

  (£142.38 inc VAT)

  Quantity:

  4 - 7

  (£138.82 inc VAT)

  Quantity:

  8+

  (£135.26 inc VAT)
  Pewag PLDW M30 Prolift Delta Swivel Lifting Point 6700kg (Net Weight Per Item: 2.60kg):

  Quantity:

  1 - 3

  (£178.98 inc VAT)

  Quantity:

  4 - 7

  (£174.51 inc VAT)

  Quantity:

  8+

  (£170.03 inc VAT)
  Pewag PLDW M36 Prolift Delta Swivel Lifting Point 8000kg (Net Weight Per Item: 4.30kg):

  Quantity:

  1 - 3

  (£233.70 inc VAT)

  Quantity:

  4 - 7

  (£227.86 inc VAT)

  Quantity:

  8+

  (£222.02 inc VAT)
  Pewag PLDW M42 Prolift Delta Swivel Lifting Point 10000kg (Net Weight Per Item: 5.10kg):

  Quantity:

  1 - 3

  (£252.54 inc VAT)

  Quantity:

  4 - 7

  (£246.23 inc VAT)

  Quantity:

  8+

  (£239.91 inc VAT)
  Pewag PLDW M48 Prolift Delta Swivel Lifting Point 12500kg (Net Weight Per Item: 5.40kg):

  Quantity:

  1 - 3

  (£275.82 inc VAT)

  Quantity:

  4 - 7

  (£268.92 inc VAT)

  Quantity:

  8+

  (£262.03 inc VAT)
