What Is a Fall Restraint System?

When working at height, it's essential to have an effective fall protection system in place, for the safety of yourself and those around you.

In order to select the right fall protection system for the task at hand, it's important to have a firm understanding of both fall arrest and fall restraint systems, and a thorough knowledge of how they work.

Fall restraint systems are designed to restrict the movements of workers, and keep them from venturing into areas where there is a risk of falling. The hierarchy of control set out within the working at height regulations requires us to consider a fall restraint system before a fall arrest system.

Whereas fall restraint systems aim to prevent falls from happening in the first place, fall arrest systems are designed to catch the worker when a fall occurs. Fall arrest systems are typically reserved for use in environments where a worker needs unrestricted movement and access to all areas.

Read More: What's the Difference Between Fall Arrest & Fall Restraint?

What are the components of a fall restraint system?

Typically, a fall restraint system consists of…

• A harness
• A restraint lanyard
• An anchor point

Fall restraint harnesses

Here at SafetyLiftinGear, we offer a wide range of safety harnesses for use in both fall arrest and fall restraint systems.

Here are some of our best-selling fall restraint harnesses:

LifeGear HT-315 2 Point Full Safety Harness

The LifeGear HT-315 2 Point Full Safety Harness is a fully adjustable harness with two attachment points (rear and chest). This harness is available in two sizes: M-L and XL-XXL.

Key Features:

• Rear attachment point
• Chest attachment point
• Fully adjustable at the legs, upper body and chest
• Includes identity label with all the key information
• Comfortable to wear
• Easy to fit
• Max user weight: 100kg
• Weight: 1.07kg
• Conforms to EN361

Buy Now >

Kratos FA1010800 Single Point Full Safety Harness

The Kratos FA1010800 Single Point Full Safety Harness features one dorsal attachment point, plus adjustable shoulder and thigh straps.

Key Features:

• Shoulder and thigh straps differentiated by a dual colour scheme
• Ideally positioned sit-strap for extended comfort
• Conforms to EN 361:2002
• Max user weight: 140kg
• Universal size
• Weight: 1.01kg

Buy Now >

Ridgegear RGH2 2 Point Full Safety Harness

The Ridgegear RGH2 2 Point Full Safety Harness is a two-point safety harness with rear- and chest-mounted front attachment points.

Key Features:

• Front and rear attachment points
• Lightweight
• Fully adjustable (easy slide shoulder adjusters)
• High tensile steel alloy fittings
• Material: 45mm water repellent polyester
• Accredited to EN 361:2002
• Weight: 1kg
• Max user weight: 140kg

Buy Now >

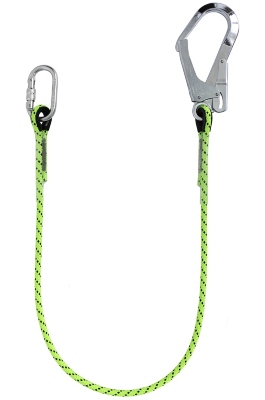

Fall restraint lanyards

There are significant differences between fall restraint lanyards and fall arrest lanyards. Fall arrest lanyards are equipped with an energy-absorbing element designed to dissipate the energy generated during a fall. While fall arrest lanyards can be used in restraint systems, fall restraint lanyards CANNOT be used in a fall arrest system as they are not equipped with this energy-dissipating element.

Here are some of the fall restraint lanyards available from SafetyLiftinGear:

Restraint Lanyard with Karabiner & Scaffold Hook (1m, 1.5m or 2m)

This G-Force Restraint Lanyard with Karabiner & Scaffold Hook has sewn end terminations complete with plastic thimble eyes.

Key Features:

• Rope type: Kermantle
• Rope diameter: 10.5mm
• M.B.S 22kN
• Conforms to EN354 and EN358 CE standards
• Made in the EU

Buy Now >

Restraint Rope Lanyard, Karabiner Each End

This restraint rope lanyard has sewn end terminations with plastic thimble eyes and a karabiner at each end.

Key Features:

• Rope type: Kermantle
• Rope diameter: 10.5mm
• M.B.S 22kN
• Conforms to EN354 and EN358 CE standards
• Made in the EU

Buy Now >

'Y' Restraint lanyard, with a Thimble Eye at Each End

This twin-tail restraint rope lanyard has sewn end terminations complete with plastic thimble eyes. It is ideal for maintaining a point of contact during the transition between anchor points.

Key Features:

• Rope type: Kermantle
• Rope diameter: 10.5mm
• M.B.S 22kN
• Conforms to EN354 and EN358 CE standards
• Made in the EU

Buy Now >

Fall restraint anchor points

Depending on the environment you're working in, there are a wide range of different permanent and portable anchor points you can utilise for your fall restraint system.

Here are some of our most popular fall restraint anchor systems:

IM101 Portable Roof Man Anchor for 1 Person

This IM101 Portable Roof Man Anchor is ideal for fall restraint when working on flat roofs where there is no suitable anchor point.

Key Features:

• Special rubber base for extra grip
• Chassis made from hot-dip galvanised steel
• Suitable for one person only
• Conforms to EN795 E

Buy Now >

DW200 A-Frame Deadweight Anchor System

The G-Force DW200 is an A-frame anchor system designed for use on flat roof surfaces. The A-frame can be moved sideways as required, therefore saving job time by reducing the need for re-rigging.

Key Features:

• Height of A-Frame: 2486mm
• Width of front beam: 1766mm
• Length: 2420mm
• Weight of A-Frame: 48.5kg
• Number of weights: 12 pieces
• Mass of the weights: 25kgs each
• Total weight: 348.5kg
• Conforms to EN795 Type B

Buy Now >

G-Force Permanent Anchor Point

The G-Force Permanent Anchor Point is designed to serve as a fixed anchor point.

Key Features:

• Material: Light alloy
• Weight: 300g
• Length: 135mm
• Width: 60mm
• Height: 60mm
• Complies with EN 795 Class A standards

Buy Now >

Fall restraint kits

For maximum convenience, we also provide a range of fall restraint kits that include all the components of an effective fall restraint system in one tidy package:

G-Force Harness Restraint Kit

This cost-effective Harness Restraint Kit that's ideal for use with access equipment.

Includes:

• P10 Full Safety Harness
• 1x LB100 2mtr Adjustable Restraint Lanyard EN354 EN358 CE
• x2 GFAZ011 Screw Lock Karabiner
• BAG6 Black Drawstring Storage Kit Bag

Buy Now >

P11 2-point Harness Restraint Kit

The P11 2-Point Harness Restraint Kit contains:

• P11 2-point Full Safety Harness
• 1x LB100 2mtr Adjustable Restraint Lanyard EN354 EN358 CE
• x2 GFAZ011 Screw Lock Karabiner
• BAG6 Black Drawstring Storage Kit Bag

Buy Now >

LifeGear Multi-Purpose Harness Restraint Kit

The LifeGear Multi-Purpose Harness Restraint Kit includes:

• LifeGear HT-321 Multi-Purpose Full Safety Harness
• LifeGear 2mtr Adjustable Restraint Lanyard c/w Karabiners
• 2x Screw Gate Karabiners
• Draw-string kit bag

Buy Now >

Here at SafetyLiftinGear, we provide a wide range of fall protection equipment to suit all sorts of different requirements. Click the link below to browse our full collection.

Browse Fall Protection Equipment

When working at height, the importance of having the right equipment can't be understated. If you'd like to talk with a professional about selecting the right components for your fall restraint system, reach out and contact SafetyLiftinGear today. One of our expert team members will be happy to advise you.
